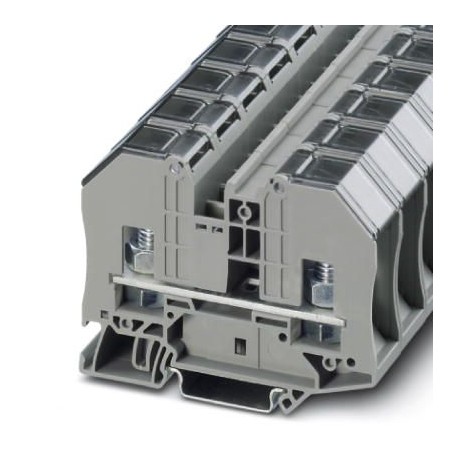

Key Commercial Data
| Orderkey | 3050002 |
|---|---|
| Packing unit | 25 pc |
| Minimum order quantity | 25 pc |
| Catalog page | Page 383 (C-1-2017) |
| GTIN | 4046356431415 |
| Weight per Piece (excluding packing) | 85.560 g |
| Custom tariff number | 85369010 |
| Country of origin | CN (China) |
General
| Note | Note: the BE-RT… path extension is to be used for non-insulated cable lugs (see accessories). |
|---|---|
| Number of positions | 1 |
| Number of levels | 1 |
| Number of connections | 2 |
| Potentials | 1 |
| Nominal cross section | 35 mm² |
| Color | gray |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Rated surge voltage | 8 kV |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Insulating material group | I |
| Maximum power dissipation for nominal condition | 4.06 W |
| Maximum load current | 125 A (with 35 mm² conductor cross section) |
| Nominal current IN | 125 A |
| Nominal voltage UN | 1000 V |
| Open side panel | Yes |
Dimensions
| Width | 20.2 mm |
|---|---|
| End cover width | 2.2 mm |
| Length | 84 mm |
| Height | 63.2 mm |
| Height NS 35/7,5 | 63.8 mm |
| Height NS 35/15 | 71.3 mm |
Connection data
| Note | Connection bolts |
|---|---|
| Connection method | Bolt connection |
| Screw thread | M8 |
| Tightening torque, min | 6 Nm |
| Tightening torque max | 10 Nm |
| Conductor cross section solid min. | 2.5 mm² |
| Conductor cross section solid max. | 35 mm² |
| Conductor cross section flexible min. | 2.5 mm² |
| Conductor cross section flexible max. | 35 mm² |
| Min. AWG conductor cross section, flexible | 14 |
| Max. AWG conductor cross section, flexible | 2 |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 2.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 35 mm² |
| Cable lug connection according to standard | DIN 46234 |
| Min. cross section for cable lug connection | 2.5 mm² |
| Max. cross section for cable lug connection | 35 mm² |
| Hole diameter, min. | 8.4 mm |
| Cable lug width, max. | 16 mm |
| Bolt diameter | 8 mm |
| Cable lug connection according to standard | DIN 46235 |
| Hole diameter, min. | 8.4 mm |
| Cable lug width, max. | 14 mm |
| Bolt diameter | 8 mm |
| Cable lug connection according to standard | DIN 46237 |
| Min. cross section for cable lug connection | 2.5 mm² |
| Max. cross section for cable lug connection | 6 mm² |
| Hole diameter, min. | 8.4 mm |
| Cable lug width, max. | 14 mm |
| Bolt diameter | 8 mm |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
