RSCWE 6-3/6SL GN/BU 1090786 PHOENIX CONTACT Test terminal strip, nom. voltage: 400 V AC/DC, connection metho..
RSCWE 6-3/6SL GN/BU 1090786 PHOENIX CONTACT Test terminal strip, nom. voltage: 400 V AC/DC, connection metho..

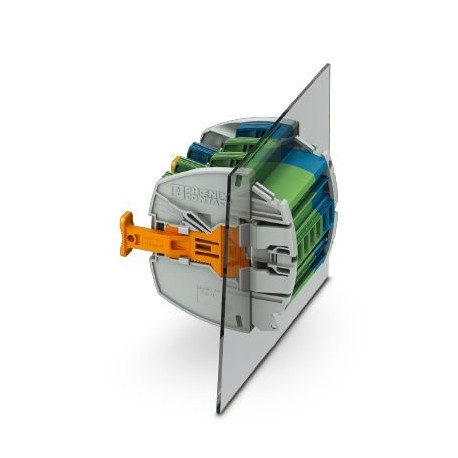

Test terminal strip, nom. voltage: 400 V AC/DC, connection method: Ring cable lug, number of connections: 12, number of positions: 6, color: Green/blue
Liên hệ:
Key Commercial Data
| Orderkey | 1090786 |
|---|---|
| Packing unit | 1 |
| Catalog page | Page 644 (C-1-2019) |
| GTIN | 4055626901343 |
| Custom tariff number | 85366990 |
General
| Number of positions | 6 |
|---|---|
| Number of levels | 1 |
| Number of connections | 12 |
| Potentials | 6 |
| Nominal cross section | 6 mm² |
| Color | Green/blue |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Rated surge voltage | 4 kV |
| Test surge voltage | 5 kV |
| Overvoltage category | III |
| Insulating material group | I |
| Maximum power dissipation for nominal condition | 1.31 W |
| Maximum load current | 30 A (with 10 mm² conductor cross section) |
| Current Ith | 24 A |
| Nominal voltage UN | 400 V AC/DC |
| Open side panel | No |
Connection data
| Connection | 1 level |
|---|---|
| Connection method | Ring cable lug |
| Screw thread | No 8 UNC |
| Stripping length | 12 mm |
| Tightening torque, min | 1.5 Nm |
| Tightening torque max | 1.8 Nm |
| Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross section flexible min. | 0.5 mm² |
| Conductor cross section flexible max. | 10 mm² |
| Min. AWG conductor cross section, flexible | 24 |
| Max. AWG conductor cross section, flexible | 8 |
| 2 conductors with same cross section, solid min. | 0.5 mm² |
| 2 conductors with same cross section, solid max. | 6 mm² |
| 2 conductors with same cross section, stranded min. | 0.5 mm² |
| 2 conductors with same cross section, stranded max. | 6 mm² |
| Cable lug connection according to standard | DIN 46234:1980-03 |
| Min. cross section for cable lug connection | 0.5 mm² |
| Max. cross section for cable lug connection | 10 mm² |
| Hole diameter, min. | 4.3 mm |
| Cable lug width, max. | 8 mm |
| Bolt diameter | 4.1 mm |
| Cable lug connection according to standard | DIN 46237:1970-07 |
| Min. cross section for cable lug connection | 0.5 mm² |
| Max. cross section for cable lug connection | 10 mm² |
| Hole diameter, min. | 4.3 mm |
| Cable lug width, max. | 8 mm |
| Bolt diameter | 4.1 mm |
| Internal cylindrical gage | A5 |
Standards and Regulations
| Connection in acc. with standard | IEC 60947-7-1 |
|---|---|
| Flammability rating according to UL 94 | V0 |
Classifications
[email protected]
| [email protected] 4.0 | 27141118 |
|---|---|
| [email protected] 4.1 | 27141118 |
| [email protected] 5.0 | 27141118 |
| [email protected] 5.1 | 27141100 |
| [email protected] 6.0 | 27141100 |
| [email protected] 7.0 | 27141126 |
| [email protected] 8.0 | 27141126 |
| [email protected] 9.0 | 27141126 |
