Key Commercial Data
| Orderkey | 2905195 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 367 (C-5-2017) |
| GTIN | 4046356946650 |
| Weight per Piece (excluding packing) | 93.800 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 70 °C |
General
| Max. perm. operating voltage | 30 V DC |
|---|---|
| Max. perm. current (per branch) | 1 A (per signal path) |
| Max. permissible current (separate power supply) | 3 A |
| Number of positions | 14 |
| Status display | Yellow LED/per channel |
| Mounting position | any |

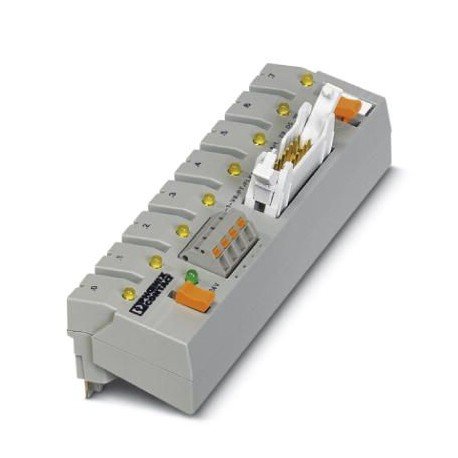

| Assembly instructions | Can be plugged into 8 x RIFLINE complete RIF-1 relay bases |
| Degree of protection | IP20 |
Connection data for connection 1
| Connection name | Supply |
|---|---|
| Connection method | Push-in connection |
| Stripping length | 10 mm |
| Conductor cross section solid | 0.2 mm² … 1.5 mm² |
| Conductor cross section flexible | 0.2 mm² … 1.5 mm² |
| Conductor cross section AWG | 24 … 16 |
| Number of connections | 4 |
Connection data for connection 2
| Connection name | Controller level |
|---|---|
| Connection method | IDC/FLK pin strip |
| Number of connections | 1 |
| Number of positions | 14 |
| Pitch | 2.54 mm |
