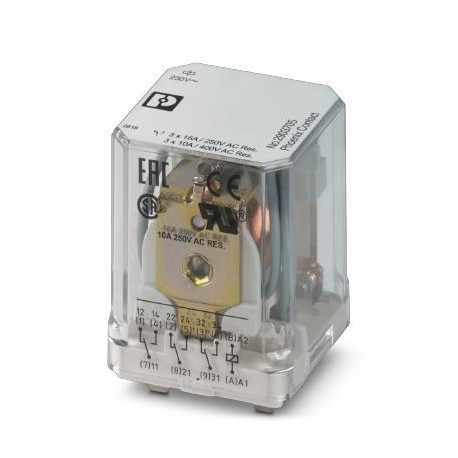

Key Commercial Data
| Orderkey | 2903705 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 326 (C-5-2017) |
| GTIN | 4046356759175 |
| Weight per Piece (excluding packing) | 84.500 g |
| Custom tariff number | 85364900 |
| Country of origin | PL (Poland) |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 55 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
Coil side
| Nominal input voltage UN | 230 V AC |
|---|---|
| Mains frequency | 50/60 Hz |
| Typical input current at UN | 12 mA |
| Typical response time | 5 ms … 25 ms (depending on phase relation) |
| Typical release time range | 5 ms … 20 ms (depending on phase relation) |
| Coil resistance | 7080 Ω ±15 % |
| Power dissipation for nominal condition | 2.76 W |
Contact side
| Contact type | 3 PDTs |
|---|---|
| Type of switch contact | Single contact |
| Contact material | AgNi |
| Maximum switching voltage | 440 V AC |
| 250 V DC | |
| Minimum switching voltage | 10 V (At 24 mA) |
| Min. switching current | 10 mA (at 24 V) |
| Maximum inrush current | 50 A (20 ms, N/O contact) |
| Limiting continuous current | 16 A |
| Interrupting rating (ohmic load) max. | 384 W (at 24 V DC) |
| 124 W (at 48 V DC) | |
| 108 W (at 60 V DC) | |
| 52 W (at 110 V DC) | |
| 70 W (at 220 V DC) | |
| 4000 VA (for 250 V AC) | |
| 4000 VA (at 440 V AC) | |
| 3-phase motor load | 1500 W (at 400 V, AC3) |
| Motor load according to UL 508 | 1/3 HP, 120 V AC (single-phase AC motor) |
| 1/2 HP, 240 V AC (single-phase AC motor) | |
| 1/2 HP, 240 V AC (three-phase induction motor) |
General
| Note | The outputs are not suitable for switching different outer conductors. |
|---|---|
| Do not use to separate SELV / PELV circuits from other circuits, because safe isolation is not guaranteed. | |
| Test voltage relay winding/relay contact | 2.5 kVrms(50 Hz, 1 min.) |
| Test voltage PDT/PDT | 2.5 kVrms(50 Hz, 1 min.) |
| Operating mode | 100% operating factor |
| Degree of protection | RT I |
| Mechanical service life | approx. 107cycles |
| Service life, electrical | see diagram |
| Mounting position | any |
| Net weight (SAP) | 84.5 g |
