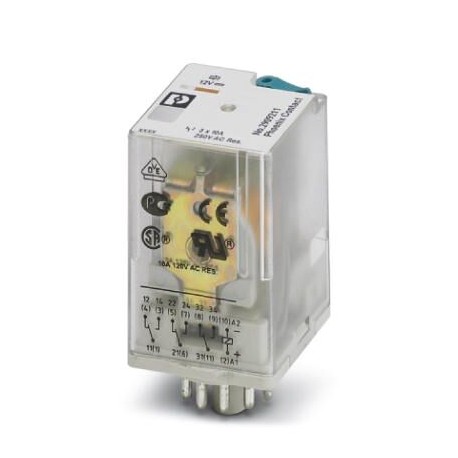

Plug-in octal relays with power contacts, 3 changeover contacts, test button, freewheeling diode, mechanical switch position indicator, polarity A1+, A2-, input voltage: 12 V DC
Liên hệ:
Key Commercial Data
| Orderkey | 2909211 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626360218 |
| Custom tariff number | 85364190 |
Note
| Note | The outputs are not suitable for switching different outer conductors. |
|---|---|
| Do not use to separate SELV / PELV circuits from other circuits, because safe isolation is not guaranteed. |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 70 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Maximum altitude | ≤ 2000 m |
| Degree of protection | RT I |
| ≥ IP54 (Installation location) |
Coil side
| Nominal input voltage UN | 12 V DC |
|---|---|
| Typical input current at UN | 112 mA |
| Typical response time | 18 ms |
| Typical release time | 20 ms |
| Protective circuit | Damping diode |
| Status display | Yellow LED |
| Coil resistance | 110 Ω ±10 % |
| Voltage type for actuation | DC |
| Power dissipation for nominal condition | 1.44 W |
Contact side
| Contact type | 3 PDTs |
|---|---|
| Type of switch contact | Single contact |
| Contact material | AgNi |
| Maximum switching voltage | 250 V DC |
| 440 V AC | |
| Minimum switching voltage | 10 V (At 24 mA) |
| Min. switching current | 10 mA (at 24 V) |
| Maximum inrush current | 30 A (20 ms, N/O contacts) |
| Limiting continuous current | 10 A |
| Interrupting rating (ohmic load) max. | 240 W (at 24 V DC) |
| 124 W (at 48 V DC) | |
| 108 W (at 60 V DC) | |
| 52 W (at 110 V DC) | |
| 48 W (at 220 V DC) | |
| 2500 VA (for 250 V AC) | |
| Motor load according to UL 508 | 1/2 HP, 240 V AC (N/O contact) |
General
| Test voltage relay winding/relay contact | 2.5 kVrms(50 Hz, 1 min.) |
|---|---|
| Test voltage PDT/PDT | 2.5 kVrms(50 Hz, 1 min.) |
| Operating mode | 100% operating factor |
| Mechanical service life | approx. 2x 107cycles |
| Mounting position | any |
Standards and Regulations
| Standards/regulations | IEC 60664 |
|---|---|
| IEC 61810 | |
| Rated insulation voltage | 250 V AC |
| Rated surge voltage | 4 kV |
| Insulation | Basic insulation |
| Pollution degree | 3 |
| Overvoltage category | III |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
Classifications
[email protected]
| [email protected] 5.0 | 27371601 |
|---|---|
| [email protected] 5.1 | 27371601 |
| [email protected] 6.0 | 27371601 |
| [email protected] 7.0 | 27371601 |
| [email protected] 8.0 | 27371601 |
| [email protected] 9.0 | 27371601 |
