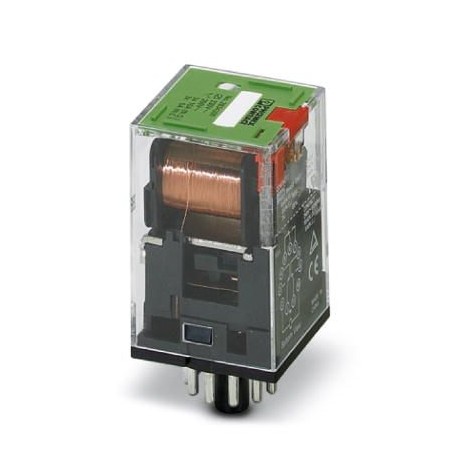

Key Commercial Data
| Orderkey | 2834300 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 390 (C-7-2015) |
| GTIN | 4017918941895 |
| Weight per Piece (excluding packing) | 118.720 g |
| Custom tariff number | 85364900 |
| Country of origin | CN (China) |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 60 °C |
Coil side
| Nominal input voltage UN | 230 V AC |
|---|---|
| Input voltage range in reference to UN | 0.8 … 1.1 |
| Mains frequency | 50/60 Hz |
| Typical input current at UN | 10 mA (at 50 Hz) |
| 11 mA (At 60 Hz) | |
| Typical response time | 5 ms … 20 ms (AC, depending on phase relation) |
| Typical release time range | 5 ms … 20 ms (AC, depending on phase relation) |
| Coil resistance | 6170 Ω ±15 % (at 20 °C) |
| Power dissipation for nominal condition | 2.3 W |
Contact side
| Contact type | 3 PDTs |
|---|---|
| Type of switch contact | Single contact |
| Contact material | AgSnIn |
| Maximum switching voltage | 250 V AC/DC |
| Minimum switching voltage | 1 V |
| Min. switching current | 10 mA |
| Maximum inrush current | on request |
| Limiting continuous current | 10 A (N/O contact) |
| 5 A (N/C contact) | |
| Interrupting rating (ohmic load) max. | 2500 VA (for 250 V AC) |
General
| Test voltage relay winding/relay contact | 2.5 kV AC (50 Hz, 1 min.) |
|---|---|
| Test voltage relay contact/relay contact | 2.5 kV AC (50 Hz, 1 min.) |
| Operating mode | 100% operating factor |
| Degree of protection | RT I |
| Mechanical service life | 10x 106cycles |
| Service life, electrical | see diagram |
| Mounting position | any |
| Assembly instructions | On relay base PR3 |
| Net weight (SAP) | 118.72 g |
