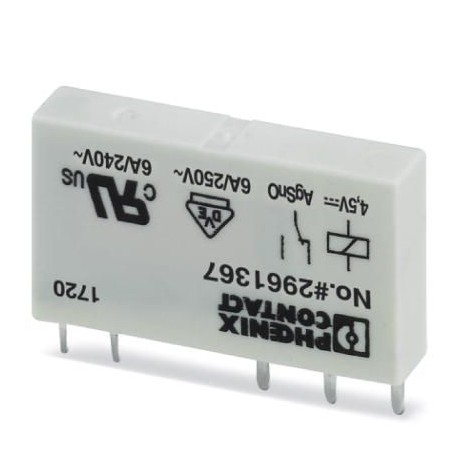

Key Commercial Data
| Orderkey | 2961367 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 392 (C-5-2017) |
| GTIN | 4017918730840 |
| Weight per Piece (excluding packing) | 6.370 g |
| Custom tariff number | 85364900 |
| Country of origin | CZ (Czech Republic) |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 85 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
Coil side
| Nominal input voltage UN | 4.5 V DC |
|---|---|
| Input voltage range in reference to UN | see diagram |
| Typical input current at UN | 38 mA |
| Typical response time | 5 ms |
| Typical release time | 2.5 ms |
| Coil resistance | 119 Ω ±10 % (at 20 °C) |
| Power dissipation for nominal condition | 0.17 W |
Contact side
| Contact type | 1 PDT |
|---|---|
| Type of switch contact | Single contact |
| Contact material | AgSnO |
| Maximum switching voltage | 250 V AC/DC |
| Minimum switching voltage | 5 V (at 100 mA) |
| Min. switching current | 10 mA (at 12 V) |
| Maximum inrush current | 10 A (4 s) |
| Limiting continuous current | 6 A |
| Interrupting rating (ohmic load) max. | 140 W (at 24 V DC) |
| 20 W (at 48 V DC) | |
| 18 W (at 60 V DC) | |
| 23 W (at 110 V DC) | |
| 40 W (at 220 V DC) | |
| 1500 VA (for 250 V AC) | |
| Switching capacity | 2 A (at 24 V, DC13) |
| 0.2 A (at 110 V, DC13) | |
| 0.1 A (at 220 V, DC13) | |
| 3 A (at 24 V, AC15) | |
| 3 A (at 120 V, AC15) | |
| 3 A (at 230 V, AC15) | |
| Motor load according to UL 508 | 1/4 HP, 240 – 277 V AC (N/O contact) |
| 1/6 HP, 240 – 277 V AC (N/C contact) |
General
| Test voltage relay winding/relay contact | 4 kV AC (50 Hz, 1 min.) |
|---|---|
| Operating mode | 100% operating factor |
| Degree of protection | RT III (wash-proof) |
| Mechanical service life | 2x 107cycles |
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
| Net weight (SAP) | 6.37 g |
