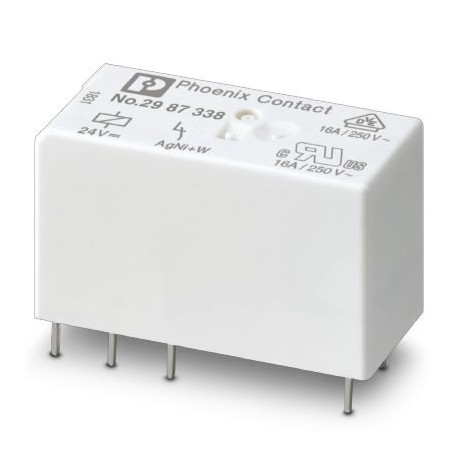

Pluggable miniature power relay, with tungsten pre-contact for high switch-on currents up to 800 A peaks, 1 N/O contact, input voltage: 24 V DC
Liên hệ:
Key Commercial Data
| Orderkey | 2987338 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4046356491112 |
| Weight per Piece (excluding packing) | 0.000 g |
| Custom tariff number | 85364190 |
| Country of origin | AT (Austria) |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 85 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Maximum altitude | ≤ 2000 m |
| Degree of protection | RT II |
Coil side
| Nominal input voltage UN | 24 V DC |
|---|---|
| Input voltage range in reference to UN | see diagram |
| Typical input current at UN | 17 mA |
| Typical response time | 8 ms |
| Typical release time | 3 ms |
| Coil resistance | 1440 Ω ±10 % (20 °C) |
| Power dissipation for nominal condition | 0.41 W |
Contact side
| Contact type | 1 N/O contact |
|---|---|
| Type of switch contact | Single contact |
| Contact material | AgSnO |
| Maximum switching voltage | 250 V AC/DC |
| Minimum switching voltage | 12 V (100 mA) |
| Min. switching current | 100 mA (at 12 V DC) |
| Maximum inrush current | 165 A (20 ms) |
| 800 A (200 µs) | |
| Limiting continuous current | 16 A |
| Interrupting rating (ohmic load) max. | 384 W (at 24 V DC) |
| 58 W (at 48 V DC) | |
| 48 W (at 60 V DC) | |
| 50 W (at 110 V DC) | |
| 80 W (at 220 V DC) | |
| 4000 VA (for 250 V AC) | |
| Switching capacity min. | 1200 mW |
| Switching capacity | 2 A (at 24 V, DC13) |
| 0.2 A (at 110 V, DC13) | |
| 0.2 A (at 250 V, DC13) | |
| 6 A (at 24 V, AC15) | |
| 6 A (at 120 V, AC15) | |
| 6 A (at 250 V, AC15) |
General
| Test voltage relay winding/relay contact | 5 kV AC (50 Hz, 1 min.) |
|---|---|
| Operating mode | 100% operating factor |
| Mechanical service life | 3x 107cycles |
| Mounting position | any |
| Assembly instructions | Can be aligned without spacing (> 70 °C ≥ 2.5 mm) |
Standards and Regulations
| Standards/regulations | EN 50178 |
|---|---|
| EN 61810-1 | |
| Rated insulation voltage | 250 V AC |
| Rated surge voltage | 6 kV |
| Insulation | Safe isolation, reinforced insulation |
| Pollution degree | 3 |
| Overvoltage category | III |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
Classifications
[email protected]
| [email protected] 4.0 | 27371104 |
|---|---|
| [email protected] 4.1 | 27371104 |
| [email protected] 5.0 | 27371001 |
| [email protected] 5.1 | 27371001 |
| [email protected] 6.0 | 27371001 |
| [email protected] 7.0 | 27371001 |
| [email protected] 8.0 | 27371601 |
| [email protected] 9.0 | 27371601 |
ETIM
| ETIM 2.0 | EC000196 |
|---|---|
| ETIM 3.0 | EC000196 |
| ETIM 4.0 | EC000196 |
| ETIM 5.0 | EC001437 |
| ETIM 6.0 | EC001437 |
| ETIM 7.0 | EC001437 |
