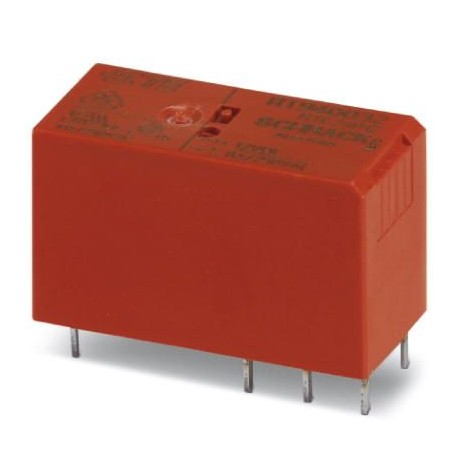

Key Commercial Data
| Orderkey | 2906988 |
|---|---|
| Packing unit | 10 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626152738 |
| Weight per Piece (excluding packing) | 15.700 g |
| Custom tariff number | 85364190 |
| Country of origin | AT (Austria) |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 85 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
Coil side
| Nominal input voltage UN | 12 V DC |
|---|---|
| Input voltage range in reference to UN | see diagram |
| Typical input current at UN | 33 mA |
| Typical response time | 7 ms |
| Typical release time | 3 ms |
| Coil resistance | 360 Ω ±10 % (at 20 °C) |
| Power dissipation for nominal condition | 0.4 W |
Contact side
| Contact type | 2 PDT |
|---|---|
| Type of switch contact | Single contact |
| Contact material | AgNi |
| Maximum switching voltage | 250 V AC/DC |
| Minimum switching voltage | 5 V (at 10 mA) |
| Min. switching current | 10 mA (At 5 V) |
| Maximum inrush current | 25 A (20 ms) |
| Limiting continuous current | 8 A |
| Interrupting rating (ohmic load) max. | 190 W (at 24 V DC) |
| 85 W (at 48 V DC) | |
| 60 W (at 60 V DC) | |
| 44 W (at 110 V DC) | |
| 60 W (at 220 V DC) | |
| 2000 VA (for 250 V AC) | |
| Switching capacity | 2 A (at 24 V, DC13) |
| 0.2 A (at 250 V, DC13) | |
| 3 A (at 24 V, AC15) | |
| 3 A (at 120 V, AC15) | |
| 3 A (at 250 V, AC15) |
General
| Test voltage relay winding/relay contact | 5 kV AC (50 Hz, 1 min.) |
|---|---|
| Test voltage relay contact/relay contact | 2.5 kV AC (50 Hz, 1 min.) |
| Operating mode | 100% operating factor |
| Degree of protection | RT III |
| Mechanical service life | 3x 107cycles |
| Service life, electrical | see diagram |
| Mounting position | any |
| Assembly instructions | Can be aligned without spacing (> 70 °C ≥ 2.5 mm) |
| Net weight (SAP) | 15.7 g |
