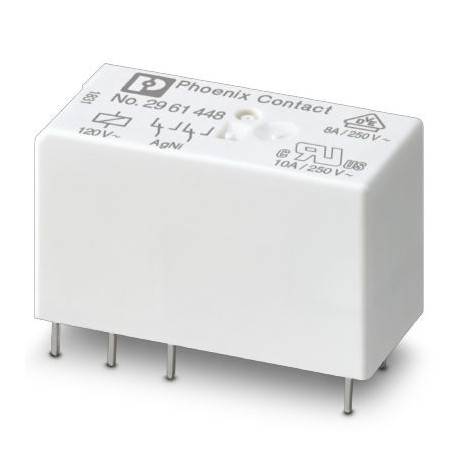

Key Commercial Data
| Orderkey | 2961448 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 304 (C-5-2017) |
| GTIN | 4017918937850 |
| Weight per Piece (excluding packing) | 15.820 g |
| Custom tariff number | 85364900 |
| Country of origin | AT (Austria) |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 85 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
Coil side
| Nominal input voltage UN | 120 V AC |
|---|---|
| Mains frequency | 50/60 Hz |
| Typical input current at UN | 7 mA (at 50 Hz) |
| 5 mA (At 60 Hz) | |
| Typical response time | 3 ms … 12 ms (depending on phase relation) |
| Typical release time range | 2 ms … 9 ms (depending on phase relation) |
| Coil resistance | 8100 Ω ±15 % (at 20 °C) |
| Power dissipation for nominal condition | 0.84 W |
Contact side
| Contact type | 2 PDT |
|---|---|
| Type of switch contact | Single contact |
| Contact material | AgNi |
| Maximum switching voltage | 250 V AC/DC |
| Minimum switching voltage | 5 V (at 10 mA) |
| Min. switching current | 10 mA (At 5 V) |
| Maximum inrush current | 12 A (20 ms) |
| Limiting continuous current | 8 A |
| Interrupting rating (ohmic load) max. | 190 W (at 24 V DC) |
| 85 W (at 48 V DC) | |
| 60 W (at 60 V DC) | |
| 44 W (at 110 V DC) | |
| 60 W (at 220 V DC) | |
| 2000 VA (for 250 V AC) | |
| Switching capacity | 2 A (at 24 V, DC13) |
| 0.2 A (at 250 V, DC13) | |
| 3 A (at 24 V, AC15) | |
| 3 A (at 120 V, AC15) | |
| 3 A (at 250 V, AC15) | |
| Motor load according to UL 508 | 1/4 HP, 120 V AC |
| 1/2 HP, 240 V AC |
General
| Test voltage relay winding/relay contact | 5 kV AC (50 Hz, 1 min.) |
|---|---|
| Test voltage relay contact/relay contact | 2.5 kV AC (50 Hz, 1 min.) |
| Operating mode | 100% operating factor |
| Degree of protection | RT III (wash-proof) |
| Mechanical service life | 1x 107cycles |
| Service life, electrical | see diagram |
| Mounting position | any |
| Assembly instructions | Can be aligned without spacing (> 70 °C ≥ 2.5 mm) |
| Net weight (SAP) | 15.82 g |
