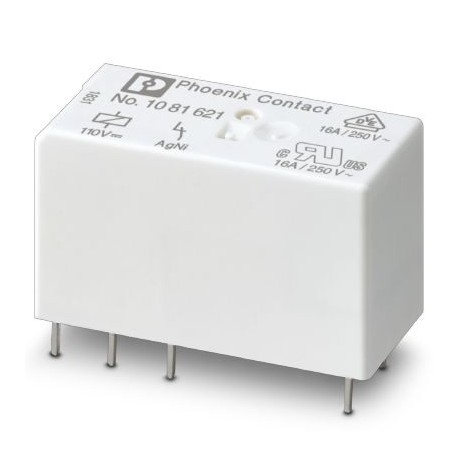

Pluggable miniature power relay, with power contact for high switch-on currents up to 130 A peaks, 1 N/O contact, input voltage: 110 V DC

sản phẩm chính hãng, MỚI 100% CHƯA SỬ DỤNG
SẢN PHẨM LUÔN ĐƯỢC KIỂM TRA TRƯỚC KHI XUẤT KHO
BẢO HÀNH 12 THÁNG ĐỐI VỚI LỖI CỦA NHÀ SẢN XUẤT / HOẶC THEO CHÍNH SÁCH CỦA SẢN PHẨM DO TRƯỜNG THỊNH PHÂN PHỐI
HỖ TRỢ KỸ THUẬT 24/7
MIỄN PHÍ GIAO HÀNG ĐỐI VỚI CÁC ĐƠN HÀNG TỪ 8,000,000VNĐ

Liên hệ:

SKU: 1081621 Danh mục: Industrial Relays Thẻ: 1081621, PHOENIX_CONTACT, REL-MR-110DC/1IC

Mô tả

Key Commercial Data

Orderkey	1081621
Packing unit	1
GTIN	4055626810317
Custom tariff number	85364900

Drawings
Ambient conditions
Contact side
Standards and Regulations
Classifications

Dimensions
Coil side
General
Environmental Product Compliance

Drawings


Drilling diagram a = pitch division 2.5 mm		Diagram Curve A Maximum permissible continuous voltage U_maxwith limiting continuous current on the contact side (see relevant technical data) Curve B Minimum permissible operate voltage U_opafter pre-excitation (see relevant technical data)

Dimensional drawing		Circuit diagram

Dimensions

Width	12.7 mm
Height	29 mm
Depth	15.7 mm

Ambient conditions

Ambient temperature (operation)	-40 °C … 85 °C
Ambient temperature (storage/transport)	-40 °C … 85 °C
Maximum altitude	≤ 2000 m
Degree of protection	RT II

Coil side

Nominal input voltage U_N	110 V DC
Input voltage range in reference to U_N	see diagram
Typical input current at U_N	3.8 mA
Typical response time	8 ms
Typical release time	3 ms
Coil resistance	28880 Ω ±10 % (20 °C)
Power dissipation for nominal condition	0.42 W

Contact side

Contact type	1 N/O contact
Type of switch contact	Single contact
Contact material	AgSnO
Maximum switching voltage	250 V AC/DC
Minimum switching voltage	12 V (100 mA)
Min. switching current	100 mA (at 12 V DC)
Maximum inrush current	80 A (20 ms)
	130 A (peak, at capacitive load, 230 V AC, 24 μF)
Limiting continuous current	16 A
Interrupting rating (ohmic load) max.	384 W (at 24 V DC)
	58 W (at 48 V DC)
	48 W (at 60 V DC)
	50 W (at 110 V DC)
	80 W (at 220 V DC)
	4000 VA (for 250 V AC)
Switching capacity min.	1200 mW

General

Test voltage relay winding/relay contact	5 kV AC (50 Hz, 1 min.)
Operating mode	100% operating factor
Mechanical service life	3x 10⁷cycles
Mounting position	any
Assembly instructions	Can be aligned without spacing (> 70 °C ≥ 2.5 mm)

Standards and Regulations

Standards/regulations	EN 50178
	EN 61810-1
Rated insulation voltage	250 V AC
Rated surge voltage	6 kV
Insulation	Safe isolation, reinforced insulation
Pollution degree	3
Overvoltage category	III

Environmental Product Compliance

China RoHS	Environmentally Friendly Use Period = 50
	For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration”

Classifications

[email protected]

[email protected] 8.0	27371601
[email protected] 9.0	27371601

ETIM

ETIM 5.0	EC001437
ETIM 6.0	EC001437
ETIM 7.0	EC001437

Drawings
Ambient conditions
Contact side
Standards and Regulations
Classifications

Dimensions
Coil side
General
Environmental Product Compliance

Drawings


Drilling diagram a = pitch division 2.5 mm		Diagram Curve A Maximum permissible continuous voltage U_maxwith limiting continuous current on the contact side (see relevant technical data) Curve B Minimum permissible operate voltage U_opafter pre-excitation (see relevant technical data)

Dimensional drawing		Circuit diagram

Ambient conditions

Ambient temperature (operation)	-40 °C … 85 °C
Ambient temperature (storage/transport)	-40 °C … 85 °C
Maximum altitude	≤ 2000 m
Degree of protection	RT II
