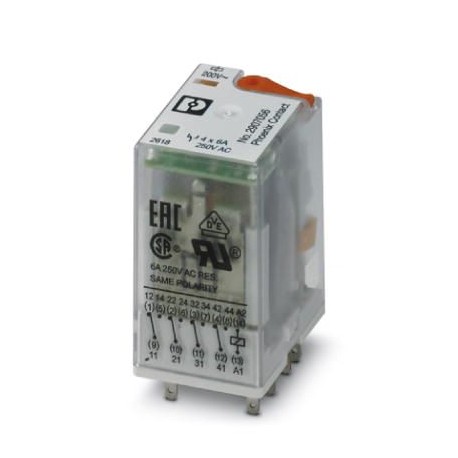

Key Commercial Data
| Orderkey | 2903686 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 314 (C-5-2017) |
| GTIN | 4046356758994 |
| Weight per Piece (excluding packing) | 32.770 g |
| Custom tariff number | 85364190 |
| Country of origin | PL (Poland) |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 55 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
Coil side
| Nominal input voltage UN | 24 V AC |
|---|---|
| Input voltage range in reference to UN | see diagram |
| Mains frequency | 50/60 Hz |
| Typical input current at UN | 66 mA |
| Typical response time | 5 ms … 15 ms (depending on phase relation) |
| Typical release time range | 5 ms … 20 ms (depending on phase relation) |
| Status display | Yellow LED |
| Power dissipation for nominal condition | 1.58 W |
Contact side
| Contact type | 4 PDTs |
|---|---|
| Type of switch contact | Single contact |
| Contact material | AgNi |
| Maximum switching voltage | 250 V AC/DC |
| Minimum switching voltage | 5 V (At 24 mA) |
| Min. switching current | 5 mA (at 24 V) |
| Maximum inrush current | 16 A (20 ms, N/O contact) |
| Limiting continuous current | 6 A |
| Interrupting rating (ohmic load) max. | 144 W (at 24 V DC) |
| 124 W (at 48 V DC) | |
| 108 W (at 60 V DC) | |
| 52 W (at 110 V DC) | |
| 48 W (at 220 V DC) | |
| 1500 VA (for 250 V AC) | |
| Switching capacity min. | 0.12 W |
| Switching capacity | 2 A (at 24 V, DC13) |
| 0.22 A (at 120 V, DC13) | |
| 0.11 A (at 250 V, DC13) | |
| 1.5 A (at 24 V, AC15) | |
| 1.5 A (at 120 V, AC15) | |
| 1 A (at 240 V, AC15) | |
| Motor load according to UL 508 | 1/3 HP, 240 V AC |
General
| Test voltage relay winding/relay contact | 2.5 kVrms(50 Hz, 1 min.) |
|---|---|
| Test voltage PDT/PDT | 2 kVrms(50 Hz, 1 min.) |
| Operating mode | 100% operating factor |
| Degree of protection | RT I |
| Mechanical service life | approx. 2x 107cycles |
| Service life, electrical | see diagram |
| Mounting position | any |
| Net weight (SAP) | 32.774 g |
