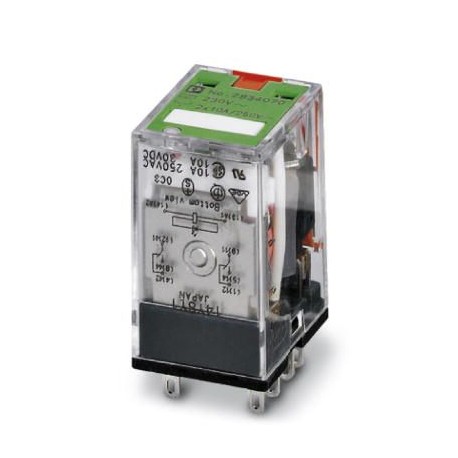

Key Commercial Data
| Orderkey | 2834070 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 386 (C-7-2015) |
| GTIN | 4017918941819 |
| Weight per Piece (excluding packing) | 37.070 g |
| Custom tariff number | 85364900 |
| Country of origin | JP (Japan) |
Ambient conditions
| Ambient temperature (operation) | -55 °C … 70 °C |
|---|---|
| Ambient temperature (storage/transport) | -55 °C … 70 °C |
Coil side
| Nominal input voltage UN | 230 V AC |
|---|---|
| Mains frequency | 50/60 Hz |
| Typical input current at UN | 5 mA (at 50 Hz) |
| 4 mA (At 60 Hz) | |
| Typical response time | 4 ms … 10 ms (AC, depending on phase relation) |
| Typical release time range | 3 ms … 12 ms (AC, depending on phase relation) |
| Coil resistance | 18790 Ω ±15 % (at 20 °C) |
| Power dissipation for nominal condition | 1.15 W |
Contact side
| Contact type | 2 PDT |
|---|---|
| Type of switch contact | Single contact |
| Contact material | Ag |
| Maximum switching voltage | 250 V AC/DC |
| Minimum switching voltage | 5 V |
| Min. switching current | 1 mA |
| Maximum inrush current | 20 A (15 ms) |
| Limiting continuous current | 10 A |
| Interrupting rating (ohmic load) max. | 2500 VA (for 250 V AC) |
General
| Test voltage relay winding/relay contact | 2 kV AC (50 Hz, 1 min.) |
|---|---|
| Test voltage relay contact/relay contact | 2 kV AC (50 Hz, 1 min.) |
| Operating mode | 100% operating factor |
| Degree of protection | RT I |
| Mechanical service life | 5x 107cycles |
| Service life, electrical | see diagram |
| Mounting position | any |
| Assembly instructions | On relay base PR2 |
| Net weight (SAP) | 37.07 g |
