Key Commercial Data
| Orderkey | 1684056 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 128 (PC-2009) |
| GTIN | 4017918172060 |
| Weight per Piece (excluding packing) | 1,015.700 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
General
| Rated voltage | 150 V |
|---|---|
| Number of positions | 19 |

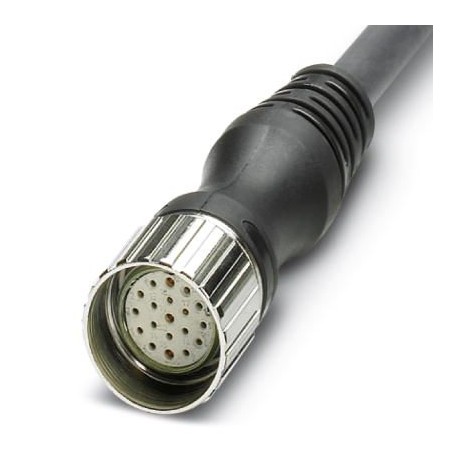

| Note | The master cable is earmarked for use on the sensor/actuator boxes with an M23 plug-in connection. |
Ambient conditions
| Degree of protection | IP65 |
|---|---|
| IP67 | |
| Ambient temperature (operation) | -40 °C … 125 °C (Plug / socket) |
Insulation material
| Housing material | PUR |
|---|---|
| Material of contact, master cable side | CU alloy |
| Material of contact surface, master cable side | Gold-plated |
| Material of the contact carrier on the master cable side | PA |
Connection assignment
| Slot/position = pin = conductor color | 1 / 4 (A) = 15 = WH |
|---|---|
| 1 / 2 (B) = 7 = GY/PK | |
| 2 / 4 (A) = 5 = GN | |
| 2 / 2 (B) = 4 = RD/BU | |
| 3 / 4 (A) = 16 = YE | |
| 3 / 2 (B) = 8 = WH/GN | |
| 4 / 4 (A) = 3 = GY | |
| 4 / 2 (B) = 14 = BN/GN | |
| 5 / 4 (A) = 17 = PK | |
| 5 / 2 (B) = 9 = WH/YE | |
| 6 / 4 (A) = 2 = RD | |
| 6 / 2 (B) = 13 = YE/BN | |
| 7 / 4 (A) = 11 = BK | |
| 7 / 2 (B) = 10 = WH/GY | |
| 8 / 4 (A) = 1 = VT | |
| 8 / 2 (B) = 18 = GY/BN | |
| 1-8 / 1 (+ 120 V) = 19 = BN | |
| 1-8 / 3 (0 V) = 6 = BU | |
| 1-8 / 5 (PE) = 12 = GN/YE |
