RC-12P1N127400 1596949 PHOENIX CONTACT Coupler connector, with Pg7 connection thread, straight, shielded: no..
RC-12P1N127400 1596949 PHOENIX CONTACT Coupler connector, with Pg7 connection thread, straight, shielded: no..

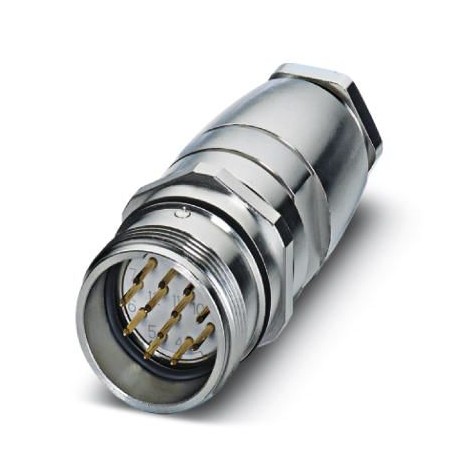

Coupler connector, with Pg7 connection thread, straight, shielded: no, Screw locking, M23, No. of pos.: 12, type of contact: Pin, Solder connection, cable diameter range: 4 mm … 6 mm
Liên hệ:
Key Commercial Data
| Orderkey | 1596949 |
|---|---|
| Packing unit | 1 |
| GTIN | 4046356213561 |
| Custom tariff number | 85366990 |
Data of the insulating body
| Coding | N |
|---|---|
| Insertion/withdrawal cycles mechanical | 100 |
| Contact connection method | Solder connection |
| Type of contacts | Pin |
| Application | Signal |
| Number of positions | 12 |
| Contact diameter of power contacts | 1 mm |
| Litz wire cross section of power contacts min. | 0.08 mm² |
| Litz wire cross section of power contacts max. | 1 mm² |
| Nominal current per power contact at 25°C | 8 A |
| Nominal voltage, power contact | 150 V |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Overvoltage category | II |
| Degree of pollution | 3 |
Housing data
| Note | Order information: Order contact inserts and cable clamping separately |
|---|---|
| Housing material | Metal |
| Type of locking | Screw locking |
| Degree of protection (when plugged in) | IP65 |
| IP67 | |
| Thread type | M23 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
