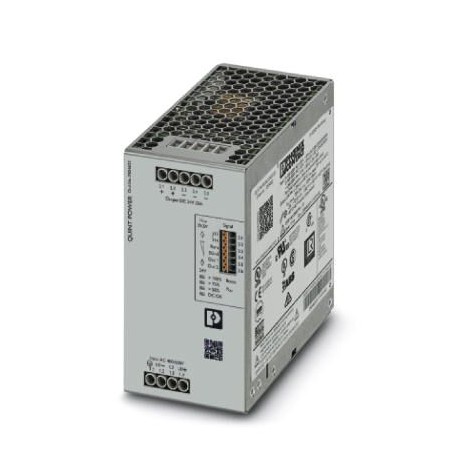

Preconfigured version of the primary-switched QUINT POWER power supply for DIN rail mounting with free choice of output characteristic curve and SFB (Selective Fuse Breaking) Technology, input: 3-phase,
output: 24 V DC / 20 A
Key Commercial Data
| Orderkey | 1035480 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626541846 |
| Custom tariff number | 85044030 |
Dimensions
| Width | 70 mm |
|---|---|
| Height | 130 mm |
| Depth | 125 mm |
| Width with alternative assembly | 122 mm |
| Height with alternative assembly | 130 mm |
| Depth with alternative assembly | 73 mm |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -25 °C … 70 °C (> 60 °C Derating: 2.5 %/K) |
| Ambient temperature (start-up type tested) | -40 °C |
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
| Climatic class | 3K3 (in acc. with EN 60721) |
| Degree of pollution | 2 |
| Installation height | ≤ 5000 m (> 2000 m, observe derating) |
Input data
| Nominal input voltage range | 3x 400 V AC … 500 V AC |
|---|---|
| 2x 400 V AC … 500 V AC | |
| ± 260 V DC … 300 V DC | |
| Input voltage range | 3x 400 V AC … 500 V AC -20 % … +10 % |
| 2x 400 V AC … 500 V AC -10 % … +10 % | |
| ± 260 V DC … 300 V DC -13 % … +30 % | |
| AC frequency range | 50 Hz … 60 Hz -10 % … +10 % |
| Discharge current to PE | < 3.5 mA |
| Current consumption | 3x 0.99 A (400 V AC) |
| 3x 0.81 A (480 V AC) | |
| 2x 1.62 A (400 V AC) | |
| 2x 1.37 A (480 V AC) | |
| 3x 0.8 A (500 V AC) | |
| 2x 1.23 A (500 V AC) | |
| Nominal power consumption | 541 VA |
| Inrush current | typ. 2 A (at 25 °C) |
| Mains buffering time | ≥ 25 ms (3x 400 V AC) |
| ≥ 25 ms (3x 480 V AC) | |
| Choice of suitable circuit breakers | 3x 4 A … 20 A (Characteristic B, C or comparable) |
| Type of protection | Transient surge protection |
| Protective circuit/component | Varistor, gas-filled surge arrester |
Output data
| Nominal output voltage | 26 V DC |
|---|---|
| Setting range of the output voltage (USet) | 24 V DC … 29.5 V DC (constant capacity) |
| Nominal output current (IN) | 20 A |
| Static Boost (IStat.Boost) | 25 A |
| Dynamic Boost (IDyn.Boost) | 30 A (5 s) |
| Selective Fuse Breaking (ISFB) | 120 A (15 ms) |
| Derating | > 60 °C (2.5%/K) |
| Connection in parallel | Yes, for redundancy and increased capacity |
| Connection in series | yes |
| Feedback resistance | ≤ 35 V DC |
| Output overvoltage protection | ≤ 32 V DC |
| Control deviation | < 0.5 % (Static load change 10 % … 90 %) |
| < 3 % (Dynamic load change 10 % … 90 %, (10 Hz)) | |
| < 0.25 % (change in input voltage ±10 %) | |
| Residual ripple | < 60 mVPP(with nominal values) |
| Output power | 480 W |
| Typical response time | 300 ms (from SLEEP MODE) |
| Maximum power dissipation in no-load condition | < 7 W (400 V AC) |
| < 7 W (480 V AC) | |
| Power loss nominal load max. | < 32 W (400 V AC) |
| < 33 W (480 V AC) |
General
| Net weight | 1.1 kg |
|---|---|
| Efficiency | typ. 93.9 % (400 V AC) |
| typ. 93.8 % (480 V AC) | |
| Insulation voltage input/output | 4 kV AC (type test) |
| 2.4 kV AC (routine test) | |
| Insulation voltage input / PE | 3.5 kV AC (type test) |
| 2.4 kV AC (routine test) | |
| Insulation voltage output / PE | 0.5 kV DC (type test) |
| 0.5 kV DC (routine test) | |
| Protection class | I |
| Degree of protection | IP20 |
| MTBF (IEC 61709, SN 29500) | > 985000 h (25 °C) |
| > 638000 h (40 °C) | |
| > 311000 h (60 °C) | |
| Mounting position | horizontal DIN rail NS 35, EN 60715 |
| Assembly instructions | alignable: PN≥50%, 5 mm horizontally, 15 mm next to active components, 50 mm vertically alignable: PN<50%, 0 mm horizontally, 40 mm vertically top, 20 mm vertically bottom |
