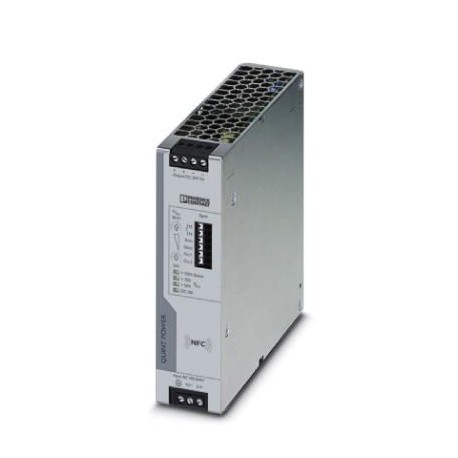

Key Commercial Data
| Orderkey | 2904600 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 206 (C-4-2017) |
| GTIN | 4046356985321 |
| Weight per Piece (excluding packing) | 900.000 g |
| Custom tariff number | 85044030 |
| Country of origin | TH (Thailand) |
Dimensions
| Width | 36 mm |
|---|---|
| Height | 130 mm |
| Depth | 125 mm |
| Width with alternative assembly | 122 mm |
| Height with alternative assembly | 130 mm |
| Depth with alternative assembly | 39 mm |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -25 °C … 70 °C (> 60 °C Derating: 2.5 %/K) |
| Ambient temperature (start-up type tested) | -40 °C |
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
| Climatic class | 3K3 (in acc. with EN 60721) |
| Degree of pollution | 2 |
| Installation height | ≤ 5000 m (> 2000 m, observe derating) |
Input data
| Nominal input voltage range | 100 V AC … 240 V AC |
|---|---|
| 110 V DC … 250 V DC | |
| Input voltage range | 100 V AC … 240 V AC -15 % … +10 % |
| 110 V DC … 250 V DC -18 % … +40 % | |
| Dielectric strength maximum | 300 V AC 60 s |
| AC frequency range | 50 Hz … 60 Hz -10 % … +10 % |
| Discharge current to PE | < 3.5 mA |
| Current consumption | 1.7 A (100 V AC) |
| 1.5 A (120 V AC) | |
| 0.9 A (230 V AC) | |
| 0.8 A (240 V AC) | |
| Nominal power consumption | 163 VA |
| Inrush surge current | typ. 14 A (at 25 °C) |
| Mains buffering | typ. 28 ms (120 V AC) |
| typ. 38 ms (230 V AC) | |
| Input fuse | 6.3 A (slow-blow, internal) |
| Choice of suitable circuit breakers | 6 A … 16 A (Characteristic B, C, D, K or comparable) |
| Type of protection | Transient surge protection |
| Protective circuit/component | Varistor, gas-filled surge arrester |
Output data
| Nominal output voltage | 24 V DC |
|---|---|
| Setting range of the output voltage (USet) | 24 V DC … 29.5 V DC (constant capacity) |
| Nominal output current (IN) | 5 A |
| Static Boost (IStat.Boost) | 6.25 A |
| Dynamic Boost (IDyn.Boost) | 10 A (≤ 60 °C (5 s)) |
| Selective Fuse Breaking (ISFB) | 30 A (15 ms) |
| Derating | > 60 °C (2.5%/K) |
| Connection in parallel | Yes, for redundancy and increased capacity |
| Connection in series | yes |
| Feedback resistance | ≤ 35 V DC |
| Protection against surge voltage on the output | ≤ 32 V DC |
| Control deviation | < 0.5 % (Static load change 10 % … 90 %) |
| < 4 % (Dynamic load change 10 % … 90 %, (10 Hz)) | |
| < 0.25 % (change in input voltage ±10 %) | |
| Residual ripple | < 30 mVPP(with nominal values) |
| Output power | 120 W |
| Typical response time | 300 ms (from SLEEP MODE) |
| Maximum power dissipation in no-load condition | < 3 W (120 V AC) |
| < 3 W (230 V AC) | |
| Power loss nominal load max. | < 17 W (120 V AC) |
| < 16 W (230 V AC) |
General
| Net weight | 0.7 kg |
|---|---|
| Efficiency | typ. 88.8 % (120 V AC) |
| typ. 89.2 % (230 V AC) | |
| Insulation voltage input/output | 4 kV AC (type test) |
| 2 kV AC (routine test) | |
| Insulation voltage input / PE | 3.5 kV AC (type test) |
| 2.4 kV AC (routine test) | |
| Insulation voltage output / PE | 0.5 kV DC (type test) |
| 0.5 kV DC (routine test) | |
| Protection class | I |
| Degree of protection | IP20 |
| MTBF (IEC 61709, SN 29500) | > 1440000 h (25 °C) |
| > 895000 h (40 °C) | |
| > 421000 h (60 °C) | |
| Mounting position | horizontal DIN rail NS 35, EN 60715 |
| Assembly instructions | alignable: PN≥50%, 5 mm horizontally, 15 mm next to active components, 50 mm vertically alignable: PN<50%, 0 mm horizontally, 40 mm vertically top, 20 mm vertically bottom |
