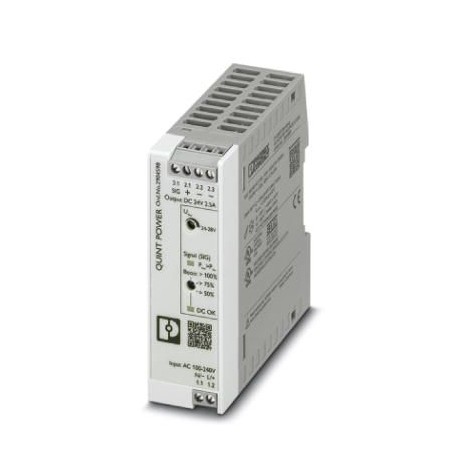

Key Commercial Data
| Orderkey | 2904598 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626156040 |
| Weight per Piece (excluding packing) | 313.100 g |
| Custom tariff number | 85044030 |
| Country of origin | DE (Germany) |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -25 °C … 70 °C (> 60 °C Derating: 2.5 %/K) |
| Ambient temperature (start-up type tested) | -40 °C |
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
| Climatic class | 3K3 (in acc. with EN 60721) |
| Degree of pollution | 2 |
| Installation height | ≤ 5000 m (> 2000 m, observe derating) |
Input data
| Input voltage range | 100 V AC … 240 V AC -15 % … +10 % |
|---|---|
| 110 V DC … 250 V DC -20 % … +40 % | |
| Dielectric strength maximum | 300 V AC 30 s |
| Discharge current to PE | < 0.25 mA (264 V AC, 60 Hz) |
| Current consumption | 0.85 A (100 V AC) |
| 0.7 A (120 V AC) | |
| 0.39 A (230 V AC) | |
| 0.37 A (240 V AC) | |
| Nominal power consumption | 71 VA |
| Inrush surge current | typ. 10 A (at 25 °C) |
| Mains buffering | typ. 54 ms (120 V AC) |
| typ. 54 ms (230 V AC) | |
| Input fuse | 3.15 A (slow-blow, internal) |
| Choice of suitable circuit breakers | 6 A … 16 A (Characteristic B, C or comparable) |
| Type of protection | Transient surge protection |
| Protective circuit/component | Varistor |
Output data
| Nominal output voltage | 24 V DC |
|---|---|
| Setting range of the output voltage (USet) | 24 V DC … 28 V DC (constant capacity) |
| Nominal output current (IN) | 2.5 A |
| Static Boost (IStat.Boost) | 3.125 A (≤ 40 °C) |
| Dynamic Boost (IDyn.Boost) | 5 A (≤60 °C (5 s), Input <150 V AC Derating 0.5 %/V) |
| Derating | > 60 °C (2.5%/K) |
| Connection in parallel | Yes, for redundancy and increased capacity |
| Connection in series | yes |
| Feedback resistance | ≤ 35 V DC |
| Protection against surge voltage on the output | ≤ 32 V DC |
| Control deviation | < 0.5 % (Static load change 10 % … 90 %) |
| < 2 % (Dynamic load change 10 % … 90 %, (10 Hz)) | |
| < 0.1 % (change in input voltage ±10 %) | |
| Residual ripple | < 40 mVPP(with nominal values) |
| Output power | 60 W |
| Typical response time | 500 ms |
| Maximum power dissipation in no-load condition | < 1 W (230 V AC) |
| < 1 W (120 V AC) | |
| Power loss nominal load max. | < 5 W (230 V AC) |
| < 5 W (120 V AC) |
General
| Net weight | 0.244 kg |
|---|---|
| Efficiency | typ. 91.9 % (120 V AC) |
| typ. 92.6 % (230 V AC) | |
| Insulation voltage input/output | 4 kV AC (type test) |
| 3 kV AC (routine test) | |
| Protection class | II |
| Degree of protection | IP20 |
| MTBF (IEC 61709, SN 29500) | > 1347000 h (25 °C) |
| > 734000 h (40 °C) | |
| > 295000 h (60 °C) | |
| Assembly instructions | DIN rail mounting |
