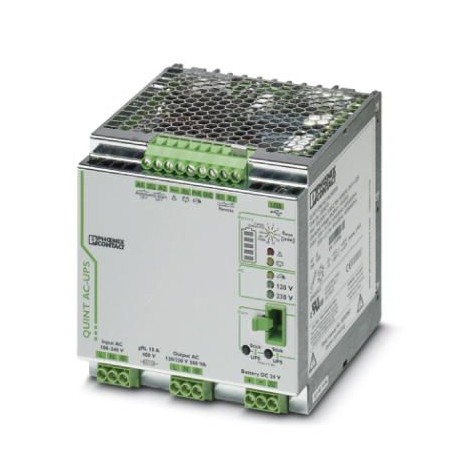

Key Commercial Data
| Orderkey | 2320270 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 280 (C-4-2017) |
| GTIN | 4046356560078 |
| Weight per Piece (excluding packing) | 2,201.000 g |
| Custom tariff number | 85371091 |
| Country of origin | DE (Germany) |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -25 °C … 70 °C (> 50 °C Derating: 2.5 %/K) |
| Ambient temperature (start-up type tested) | -40 °C |
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Max. permissible relative humidity (operation) | ≤ 95 % (25 °C, non-condensing) |
| Climatic class | 3K3 (in acc. with EN 60721) |
Input data
| Nominal input voltage | 240 V AC |
|---|---|
| 100 V AC | |
| 120 V AC -20 % / +15 % | |
| 230 V AC -20 % / +15 % | |
| 100 V AC … 240 V AC | |
| Input voltage range | 184 V AC … 264 V AC |
| 96 V AC … 138 V AC | |
| 96 V AC … 264 V AC | |
| AC frequency range | 45 Hz … 65 Hz |
| Buffer period | 1 h (38 AH) |
| Permissible backup fuse | B16 230 V AC |
| Power factor (cos phi) | 0.8 |
Output data
| Nominal output voltage | 120 V AC |
|---|---|
| 230 V AC | |
| Nominal output current (IN) | 4.3 A (120 V AC, -25°C … 50°C) |
| 2.2 A (230 V AC, -25°C … 40°C) | |
| POWER BOOST (IBoost) | 5.2 A (120 V AC, -25°C … 40°C) |
| 2.7 A (230 V AC, -25°C … 40°C) | |
| Derating | > 50 °C … 70 °C (2.5%/K) |
| Connection in parallel | no |
| Connection in series | No |
General
| IQ technology | Yes |
|---|---|
| Net weight | 2.2 kg |
| Efficiency | > 98 % (Mains operation) |
| > 98 % | |
| > 86 % | |
| Protection class | I |
| Degree of protection | IP20 |
| MTBF (IEC 61709, SN 29500) | |
| > (40 °C) | |
| Mounting position | horizontal DIN rail NS 35, EN 60715 |
| Assembly instructions | alignable: PN≥50%, 5 mm horizontally, 15 mm next to active components, 50 mm vertically alignable: PN<50%, 0 mm horizontally, 40 mm vertically top, 20 mm vertically bottom |
