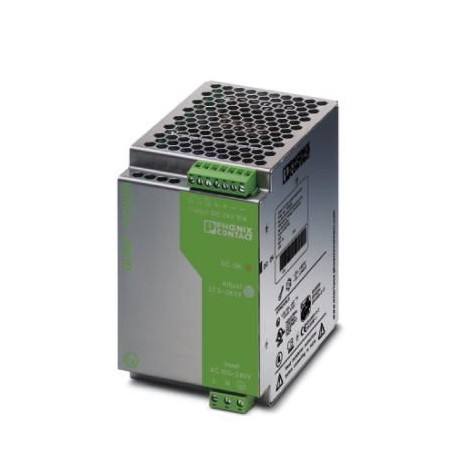

Key Commercial Data
| Orderkey | 2938866 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 595 (IF-2009) |
| GTIN | 4017918943486 |
| Weight per Piece (excluding packing) | 1,474.900 g |
| Custom tariff number | 85044030 |
| Country of origin | TH (Thailand) |
Dimensions
| Width | 85 mm |
|---|---|
| Height | 130 mm |
| Depth | 125 mm |
| Width with alternative assembly | 122 mm |
| Height with alternative assembly | 130 mm |
| Depth with alternative assembly | 88 mm |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -25 °C … 60 °C |
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Max. permissible relative humidity (operation) | 100 % (condensation permitted) |
Input data
| Nominal input voltage range | 100 V AC … 240 V AC |
|---|---|
| Input voltage range | 85 V AC … 264 V AC |
| 90 V DC … 250 V DC | |
| AC frequency range | 45 Hz … 65 Hz |
| Frequency range DC | 0 Hz |
| Current consumption | approx. 2.4 A (120 V AC) |
| 1.3 A (230 V AC) | |
| Nominal power consumption | 264 W |
| Inrush surge current | < 15 A (typical) |
| Mains buffering | > 40 ms (120 V AC) |
| > 40 ms (230 V AC) | |
| Input fuse | 6.3 A (slow-blow, internal) |
| Choice of suitable circuit breakers | 10 A … 16 A (Characteristics B, C, D, K) |
Output data
| Nominal output voltage | 24 V DC ±1 % |
|---|---|
| Setting range of the output voltage (USet) | 22.5 V DC … 28.5 V DC |
| Nominal output current (IN) | 10 A (up to 60°C) |
| POWER BOOST (IBoost) | 15 A |
| Derating | 60 °C … 70 °C (2.5%/K) |
| Connection in parallel | Yes, for redundancy and increased capacity |
| Connection in series | yes |
| Feedback resistance | 35 V DC |
| Output overvoltage protection | ≤ 35 V DC |
| Residual ripple | < 100 mVPP |
| Output power | 240 W |
| Typical response time | < 1 s |
| Maximum power dissipation in no-load condition | 4 W |
| Power loss nominal load max. | 33 W |
General
| Net weight | 1.3 kg |
|---|---|
| Operating voltage display | Green LED |
| Efficiency | > 88 % |
| Insulation voltage input/output | 4 kV AC (routine test) |
| 2 kV AC (type test) | |
| Protection class | I |
| Degree of protection | IP20 |
| MTBF (IEC 61709, SN 29500) | > 500000 h |
| Mounting position | horizontal DIN rail NS 35, EN 60715 |
| Assembly instructions | alignable: horizontally 0 mm, vertically 50 mm |
