Key Commercial Data
| Orderkey | 1582358 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 99 (PC-2011) |
| GTIN | 4046356463522 |
| Weight per Piece (excluding packing) | 25.600 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General
| Connection | For 2.5 mm² cables with ferrule, only CRIMPFOX 10S pliers (1212045) with square crimp can be used. CRIMPFOX 6H hexagonal crimping pliers (1212046) cannot be used, because the diameter on the diagonal is too large. |
|---|---|

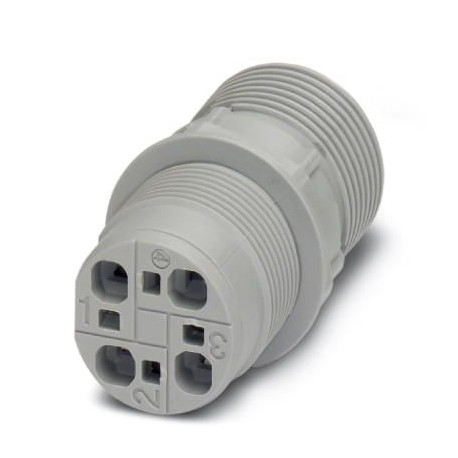

| Type | QPD 4×2,5 |
| Color | gray |
| Locking type | Screw locking |
| Connection method | QUICKON connection |
| IDC connection | |
| Number of positions | 4 |
| Note number of positions | 4 |
| Wrench size, union nut | 22 mm |
| Tightening torque, union nut | 5 Nm |
| Tightening torque, counter nut | 5 Nm |
| Wrench size, counter nut | 27 mm |
| Number of connections | 10 |
| Conductor cross section flexible min. | 1 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section solid min. | 1 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section AWG min. | 16 |
| Conductor cross section AWG max. | 14 |
Cabel
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | VDE 0295 class 1 to 6/min. 0.15 mm |
|---|---|
| Wire insulation material | PVC/PE/TPE/rubber |
| Wire diameter including insulation | 2 mm … 3.8 mm |
| External cable diameter | 6 mm … 10 mm (Order Quickon nuts or Quickon connectors separately) |
| Conductor cross section | 2.5 mm² |
| Position marking | 1, 2, 3, 4 |
Ambient conditions
| Degree of protection | IP66 |
|---|---|
| IP68 (2 m / 24 h) | |
| IP69K | |
| Ambient temperature (operation) | -40 °C … 100 °C |
| Ambient temperature (storage/transport) | -40 °C … 100 °C |
| Temperature when conductor connected | -5 °C … 50 °C |
Electrical characteristics
| Nominal current IN | 20 A |
|---|---|
| Rated current | 20 A |
| Rated voltage (III/3) | 690 V |
| Rated voltage (III/2) | 1000 V |
| Rated voltage (II/2) | 1250 V |
| Rated surge voltage (III/3) | 6 kV |
| Rated surge voltage (III/2) | 8 kV |
| Rated surge voltage (II/2) | 8 kV |
Mechanical characteristics
| QUICKON connectability | max. 10 |
|---|---|
| Insertion/withdrawal cycles | >= |
| Category of shock impact | IK07 |
