Connector – QPD P 4PE6,0 9-14 BKBK – 1417714

sản phẩm chính hãng, MỚI 100% CHƯA SỬ DỤNG
SẢN PHẨM LUÔN ĐƯỢC KIỂM TRA TRƯỚC KHI XUẤT KHO
BẢO HÀNH 12 THÁNG ĐỐI VỚI LỖI CỦA NHÀ SẢN XUẤT / HOẶC THEO CHÍNH SÁCH CỦA SẢN PHẨM DO TRƯỜNG THỊNH PHÂN PHỐI
HỖ TRỢ KỸ THUẬT 24/7
MIỄN PHÍ GIAO HÀNG ĐỐI VỚI CÁC ĐƠN HÀNG TỪ 8,000,000VNĐ

Liên hệ:

SKU: 1417714 Danh mục: QUICKON Installation System (QPD) Thẻ: 0 9-14 BKBK, 1417714, PHOENIX_CONTACT, QPD P 4PE6

Mô tả

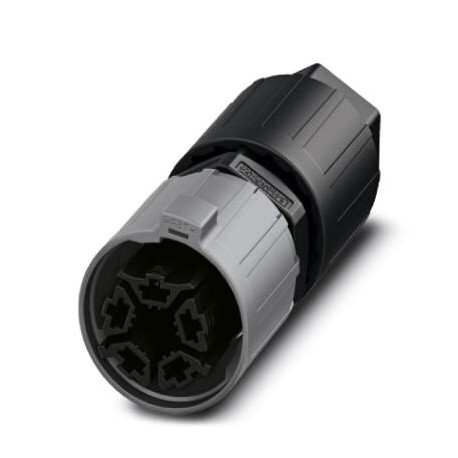

Connector, QUICKON connection, number of positions: 4+PE, 2.5 mm² … 6 mm², 690 V, 40 A, black, with QUICKON nut, cable diameter range: 9 mm … 14 mm

Key Commercial Data

Orderkey	1417714
Packing unit	1
GTIN	4055626165684
Custom tariff number	85366990

General

Type	QPD 5×6,0
Color	black
Locking type	Screw locking
Connection method	QUICKON connection
	IDC connection
Number of positions	5
Note number of positions	4+PE
Tightening torque, union nut	15 Nm
Number of connections	5
Conductor cross section flexible min.	2.5 mm²
Conductor cross section flexible max.	6 mm²
Conductor cross section solid min.	2.5 mm²
Conductor cross section solid max.	6 mm²
Conductor cross section AWG min.	14
Conductor cross section AWG max.	10

Cabel

Structure of individual litz in acc. with VDE 0295 / smallest wire diameter	VDE 0295 class 1 to 6/min. 0.15 mm
Wire insulation material	PVC/PE/TPE/rubber
Wire diameter including insulation	2.95 mm … 5 mm
External cable diameter	9 mm … 14 mm

Ambient conditions

Degree of protection	IP66
	IP68 (2 m / 24 h)
	IP69K
Ambient temperature (operation)	-40 °C … 100 °C
Ambient temperature (storage/transport)	-40 °C … 80 °C
Temperature when conductor connected	-5 °C … 50 °C

Electrical characteristics

Nominal current I_N	40 A
Rated current	40 A
Rated voltage (III/3)	690 V
Rated voltage (III/2)	1000 V
Rated voltage (II/2)	1000 V
Rated surge voltage (III/3)	6 kV
Rated surge voltage (III/2)	8 kV
Rated surge voltage (II/2)	8 kV

Mechanical characteristics

QUICKON connectability	max. 10
Category of shock impact	IK07
