Key Commercial Data
| Orderkey | 1414750 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 473 (C-2-2017) |
| GTIN | 4055626033594 |
| Weight per Piece (excluding packing) | 46.000 g |
| Custom tariff number | 85366990 |
| Country of origin | PL (Poland) |
General

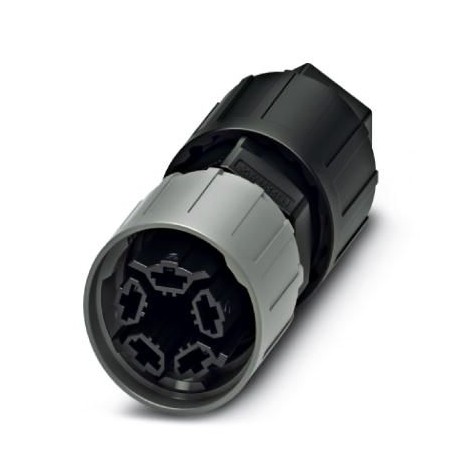

| Type | QPD 5×1,5 |
|---|---|
| Color | black |
| Locking type | Screw locking |
| Connection method | QUICKON connection |
| IDC connection | |
| Number of positions | 5 |
| Note number of positions | 4+PE |
| Tightening torque, union nut | 8 Nm |
| Tightening torque, counter nut | 5 Nm |
| Number of connections | 5 |
| Conductor cross section flexible min. | 0.5 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section solid min. | 0.5 mm² |
| Conductor cross section solid max. | 1.5 mm² |
| Conductor cross section AWG min. | 20 |
| Conductor cross section AWG max. | 16 |
Cabel
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | VDE 0295 class 1 to 6/min. 0.15 mm |
|---|---|
| Wire insulation material | PVC/PE/TPE/rubber |
| Wire diameter including insulation | 1.6 mm … 3 mm |
| External cable diameter | 9 mm … 14 mm |
| Position marking | 1, 2, 3, N, PE |
Ambient conditions
| Degree of protection | IP66 |
|---|---|
| IP68 | |
| IP69K | |
| Ambient temperature (operation) | -40 °C … 100 °C |
| Ambient temperature (storage/transport) | -40 °C … 100 °C |
| Temperature when conductor connected | -5 °C … 50 °C |
Electrical characteristics
| Nominal current IN | 17.5 A |
|---|---|
| Rated current | 17.5 A |
| Rated voltage (III/3) | 690 V |
| Rated voltage (III/2) | 1000 V |
| Rated voltage (II/2) | 1000 V |
| Rated surge voltage (III/3) | 6 kV |
| Rated surge voltage (III/2) | 8 kV |
| Rated surge voltage (II/2) | 8 kV |
Mechanical characteristics
| QUICKON connectability | max. 10 |
|---|---|
| Insertion/withdrawal cycles | > 50 |
| Category of shock impact | IK07 |
