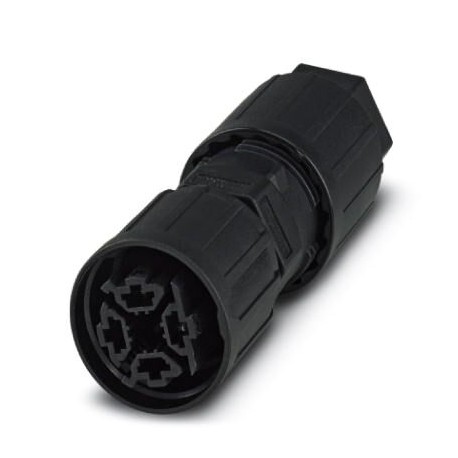

Connector – QPD P 3X1,5 4-9 BK – 1419424

sản phẩm chính hãng, MỚI 100% CHƯA SỬ DỤNG
SẢN PHẨM LUÔN ĐƯỢC KIỂM TRA TRƯỚC KHI XUẤT KHO
BẢO HÀNH 12 THÁNG ĐỐI VỚI LỖI CỦA NHÀ SẢN XUẤT / HOẶC THEO CHÍNH SÁCH CỦA SẢN PHẨM DO TRƯỜNG THỊNH PHÂN PHỐI
HỖ TRỢ KỸ THUẬT 24/7
MIỄN PHÍ GIAO HÀNG ĐỐI VỚI CÁC ĐƠN HÀNG TỪ 8,000,000VNĐ

Liên hệ:

SKU: 1419424 Danh mục: QUICKON Installation System (QPD) Thẻ: 1419424, 5 4-9 BK, PHOENIX_CONTACT, QPD P 3X1

Mô tả

Connector, QUICKON connection, number of positions: 3, 0.5 mm² … 1.5 mm², 690 V, 17.5 A, black, with QUICKON nut, cable diameter range: 5 mm … 9.5 mm, connection labeling: 1, 2, 3

Key Commercial Data

Orderkey	1419424
Packing unit	1
GTIN	4055626173030
Custom tariff number	85366990

General

Type	QPD 3×1,5
Color	black
Locking type	Screw locking
Connection method	QUICKON connection
	IDC connection
Number of positions	3
Note number of positions	3
Tightening torque, union nut	8 Nm
Tightening torque, counter nut	5 Nm
Number of connections	3
Conductor cross section flexible min.	0.5 mm²
Conductor cross section flexible max.	1.5 mm²
Conductor cross section solid min.	0.5 mm²
Conductor cross section solid max.	1.5 mm²
Conductor cross section AWG min.	20
Conductor cross section AWG max.	16

Cabel

Structure of individual litz in acc. with VDE 0295 / smallest wire diameter	VDE 0295 class 1 to 6/min. 0.15 mm
Wire insulation material	PVC/PE/TPE/rubber
Wire diameter including insulation	1.6 mm … 3 mm
External cable diameter	5 mm … 9.5 mm
Position marking	1, 2, 3

Ambient conditions

Degree of protection	IP66
	IP68
	IP69K
Ambient temperature (operation)	-40 °C … 100 °C
Ambient temperature (storage/transport)	-40 °C … 100 °C
Temperature when conductor connected	-5 °C … 50 °C

Electrical characteristics

Nominal current I_N	17.5 A
Rated current	17.5 A
Rated voltage (III/3)	690 V
Rated voltage (III/2)	1000 V
Rated voltage (II/2)	1000 V
Rated surge voltage (III/3)	6 kV
Rated surge voltage (III/2)	8 kV
Rated surge voltage (II/2)	8 kV

Mechanical characteristics

QUICKON connectability	max. 10
Insertion/withdrawal cycles	> 50
Category of shock impact	IK07
