Key Commercial Data
| Orderkey | 1641646 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 12 (PC-2002) |
| GTIN | 4017918876821 |
| Weight per Piece (excluding packing) | 61.190 g |
| Custom tariff number | 85444290 |
| Country of origin | PL (Poland) |

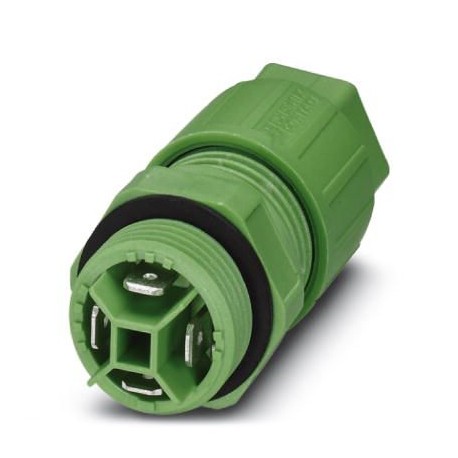

General
| Connection | If the conductor is reconnected, it must be cut off above the last contact point. QUICKON components may only be operated when under no load. |
|---|---|
| Length of cable | 0.5 m |
| Color | green |
| Connection method | QUICKON connection |
| Single litz wires 50 cm long; 1.5 mm² | |
| Note on the internal connection method | Pos. 1: Brown; pos. 2: White; pos. 3: Blue; pos. 4: Black |
| Number of positions | 4 |
| Wrench size, union nut | 19 mm |
| Tightening torque, union nut | 3 Nm |
| Wrench size, contact carrier | 24 mm |
| Tightening torque contact carrier | 4.5 Nm |
| Tightening torque, counter nut | 4.5 Nm |
| Number of connections | 4 |
| Conductor cross section flexible min. | 0.75 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section solid min. | 0.75 mm² |
| Conductor cross section solid max. | 1 mm² |
| Conductor cross section AWG min. | 18 |
| Conductor cross section AWG max. | 16 |
Cabel
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | VDE 0295 class 1 to 6/min. 0.15 mm |
|---|---|
| Wire insulation material | PVC / PE |
| Wire diameter including insulation | 1.8 mm … 3 mm |
| External cable diameter | 6 mm … 12 mm |
| Position marking | 1, 2, 3, 4 |
Ambient conditions
| Degree of protection | IP65 |
|---|---|
| IP67 | |
| Ambient temperature (operation) | -40 °C … 80 °C (specifications of the cable manufacturer must also be observed) |
| -25 °C … 50 °C | |
| Temperature when conductor connected | -5 °C … 50 °C (specifications of the cable manufacturer must also be observed) |
Electrical characteristics
| Nominal current IN | 15 A |
|---|---|
| Rated current | 15 A |
| Rated voltage (III/3) | 500 V |
| Note on the rated voltage (III/3) | with insulating sleeve PT/FS 4,8. Without insulating sleeve 250 V AC. |
| Rated voltage (III/2) | 800 V |
| Rated voltage (II/2) | 1000 V |
| Rated surge voltage (III/3) | 6 kV |
| Rated surge voltage (III/2) | 6 kV |
| Rated surge voltage (II/2) | 6 kV |
Mechanical characteristics
| QUICKON connectability | max. 10 |
|---|---|
| PC QUICKON thread type | M20 |
| Impact category | 3 |
