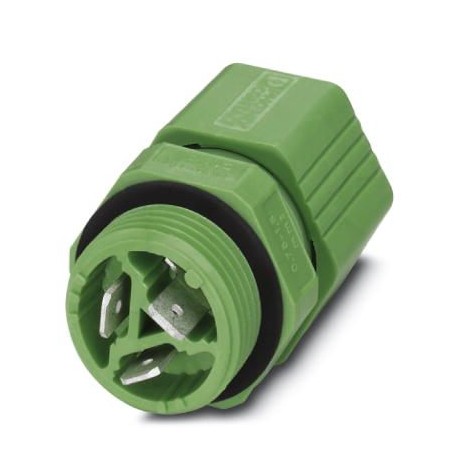

Key Commercial Data
| Orderkey | 1640663 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 18 (PC-2002) |
| GTIN | 4017918188771 |
| Weight per Piece (excluding packing) | 22.570 g |
| Custom tariff number | 85366990 |
| Country of origin | PL (Poland) |
General
| Connection | If the conductor is reconnected, it must be cut off above the last contact point. QUICKON components may only be operated when under no load. |
|---|---|
| Color | green |
| Locking type | Screw locking |
| Connection method | QUICKON connection |
| Manual solder/slip on connection | |
| Number of positions | 3 |
| Wrench size, union nut | 24 mm |
| Tightening torque, union nut | 2.5 Nm |
| Wrench size, contact carrier | 24 mm |
| Tightening torque contact carrier | 3.75 Nm |
| Tightening torque, counter nut | 3.75 Nm |
| Number of connections | 3 |
| Conductor cross section flexible min. | 0.75 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section solid min. | 0.75 mm² |
| Conductor cross section solid max. | 1.5 mm² |
| Conductor cross section AWG min. | 18 |
| Conductor cross section AWG max. | 16 |
Cabel
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | VDE 0295 Cl.2-5, min. wire diameter 0.2 mm |
|---|---|
| Wire insulation material | PVC / PE |
| Position marking | 1, 2, 3 |
Ambient conditions
| Degree of protection | IP67 |
|---|---|
| IP67 | |
| Ambient temperature (operation) | -25 °C … 80 °C (Specifications of the cable manufacturer must be observed.) |
| -25 °C … 50 °C (when the conductor is connected. Specifications of the cable manufacturer must also be observed.) | |
| Temperature when conductor connected | -5 °C … 50 °C |
Electrical characteristics
| Nominal current IN | 17.5 A (15 A with slip-on sleeve 2.5 mm²; 12 A with slip-on sleeve 1.5 mm².) |
|---|---|
| Rated voltage (III/3) | 250 V |
| Note on the rated voltage (III/3) | with insulating sleeve |
| Rated voltage (III/2) | 320 V |
| Note on the rated voltage (III/2) | with insulating sleeve |
| Rated voltage (II/2) | 630 V |
| Note on the rated voltage (II/2) | with insulating sleeve |
| Rated surge voltage (III/3) | 6 kV |
