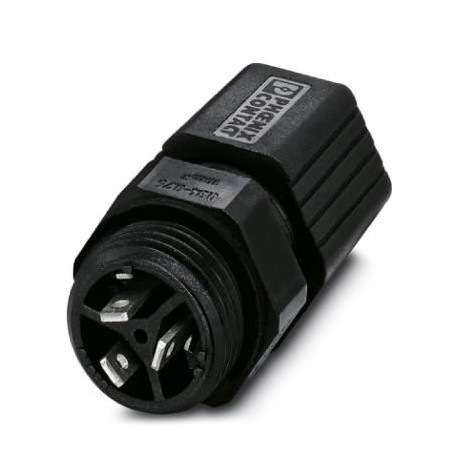

Key Commercial Data
| Orderkey | 1641497 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 103 (PC-2011) |
| GTIN | 4017918219581 |
| Weight per Piece (excluding packing) | 16.200 g |
| Custom tariff number | 85369010 |
| Country of origin | PL (Poland) |
General
| Connection | If the conductor is reconnected, it must be cut off above the last contact point. QUICKON components may only be operated when under no load. |
|---|---|
| Color | black |
| Connection method | QUICKON connection |
| Manual solder/slip-on connection; 2.8 x 0.8 mm | |
| Number of positions | 3 |
| Wrench size, union nut | 19 mm |
| Tightening torque, union nut | 2.5 Nm |
| Wrench size, contact carrier | 19 mm |
| Tightening torque contact carrier | 3.75 Nm |
| Tightening torque, counter nut | 3.75 Nm |
| Number of connections | 3 |
| Conductor cross section flexible min. | 0.34 mm² |
| Conductor cross section flexible max. | 0.75 mm² |
| Conductor cross section solid min. | 0.75 mm² |
| Conductor cross section solid max. | 1 mm² |
| Conductor cross section AWG min. | 18 |
| Conductor cross section AWG max. | 16 |
Cabel
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | Class 2-6 // 0.34 mm²: 0.1 mm; 0.5 – 0.75 mm²: 0.15 mm |
|---|---|
| Wire insulation material | PVC / PE |
| Wire diameter including insulation | >= 2.5 mm |
| External cable diameter | 5 mm … 6.8 mm |
| Position marking | 1, 2, 3 |
Ambient conditions
| Degree of protection | IP65 |
|---|---|
| IP67 | |
| Ambient temperature (operation) | -25 °C … 80 °C (Specifications of the cable manufacturer must be observed.) |
| -25 °C … 50 °C (when the conductor is connected. Specifications of the cable manufacturer must also be observed.) | |
| Temperature when conductor connected | -5 °C … 50 °C (specifications of the cable manufacturer must also be observed) |
Electrical characteristics
| Nominal current IN | 9 A |
|---|---|
| Rated current | 9 A |
| Rated voltage (III/3) | 160 V |
| Note on the rated voltage (III/3) | with insulating sleeve |
| Rated voltage (III/2) | 160 V |
| Note on the rated voltage (III/2) | with insulating sleeve |
| Rated voltage (II/2) | 320 V |
| Note on the rated voltage (II/2) | with insulating sleeve |
| Rated surge voltage (III/3) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (II/2) | 4 kV |
Mechanical characteristics
| QUICKON connectability | max. 10 (if the conductor is connected more than once, seal and cap may need to be replaced.) |
|---|---|
| PC QUICKON thread type | M16 x 1.5 |
| Impact category | 3 |
| Category of shock impact | IK07 |
