PTIO 1,5/S/5/U-BK/O-WH 3244472 PHOENIX CONTACT Sensor/actuator terminal block, nom. voltage: 250 V, nominal ..
PTIO 1,5/S/5/U-BK/O-WH 3244472 PHOENIX CONTACT Sensor/actuator terminal block, nom. voltage: 250 V, nominal ..

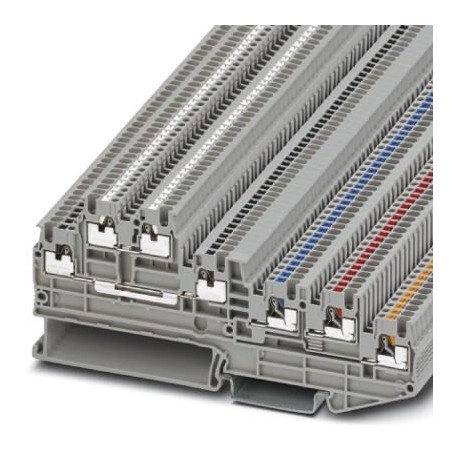

Sensor/actuator terminal block, nom. voltage: 250 V, nominal current: 13.5 A, connection method: Push-in connection, number of connections: 5, cross section: 0.14 mm² – 1.5 mm², AWG: 26 – 14, width: 3.5 mm, height: 44.6 mm, color: gray, mounting type: NS 35/7,5, NS 35/15
Liên hệ:
Key Commercial Data
| Orderkey | 3244472 |
|---|---|
| Packing unit | 1 |
| Catalog page | Page 42 (C-1-2019) |
| GTIN | 4055626447872 |
| Custom tariff number | 85369010 |
General
| Number of levels | 5 |
|---|---|
| Number of connections | 5 |
| Nominal cross section | 1.5 mm² |
| Color | gray |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Rated surge voltage | 4 kV |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Insulating material group | I |
| Connection in acc. with standard | IEC 60947-7-1 |
| Nominal current IN | 13.5 A |
| Maximum load current | 13.5 A |
| Nominal voltage UN | 250 V |
| Open side panel | Yes |
Connection data
| Connection method | Push-in connection |
|---|---|
| Conductor cross section solid min. | 0.14 mm² |
| Conductor cross section solid max. | 1.5 mm² |
| Conductor cross section flexible min. | 0.14 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section AWG min. | 26 |
| Conductor cross section AWG max. | 14 |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 0.14 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 1.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 0.14 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 1 mm² Using the AI-S 1-8 TQ ferrule, Order No. 1200293, is recommended |
| Stripping length | 8 mm … 10 mm |
| Internal cylindrical gage | A1 / B1 |
Standards and Regulations
| Connection in acc. with standard | IEC 60947-7-1 |
|---|---|
| Flammability rating according to UL 94 | V0 |
Classifications
[email protected]
| [email protected] 4.0 | 27141118 |
|---|---|
| [email protected] 4.1 | 27141118 |
| [email protected] 5.0 | 27141100 |
| [email protected] 5.1 | 27141100 |
| [email protected] 6.0 | 27141100 |
| [email protected] 7.0 | 27141128 |
| [email protected] 8.0 | 27141128 |
| [email protected] 9.0 | 27141128 |
