Key Commercial Data
| Orderkey | 2905364 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356959506 |
| Weight per Piece (excluding packing) | 62.000 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 70 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Altitude | max. 4000 m (Above sea level) |
| Degree of protection | IP20 |
General
| Housing material | PA 6.6 |
|---|---|
| Flammability rating according to UL 94 | V-0 |
| Color | black |
| Mounting type | DIN rail: 35 mm |

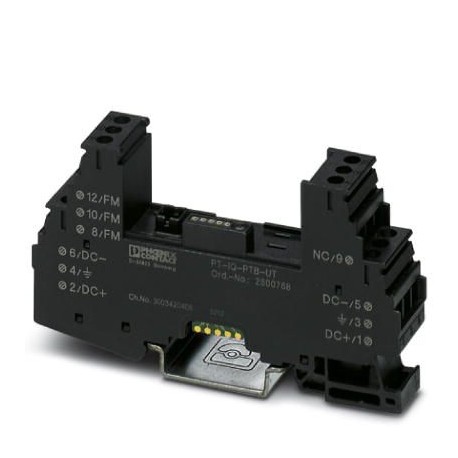

| Type | Base element, DIN rail mounting |
| Number of positions | 1 |
Protective circuit
| Nominal voltage UN | 24 V DC |
|---|---|
| Operating voltage range | 20 V DC … 30 V DC |
| Rated current | max. 130 mA (24 V DC) |
| max. 160 mA (20 V DC) | |
| Max. required back-up fuse | 500 mA (F) |
Connection data
| Connection method | Screw connection |
|---|---|
| Screw thread | M3 |
| Tightening torque | 0.5 Nm |
| Stripping length | 8 mm |
| Conductor cross section flexible | 0.2 mm² … 2.5 mm² |
| Conductor cross section solid | 0.2 mm² … 4 mm² |
| Conductor cross section AWG | 24 … 12 |
