Key Commercial Data

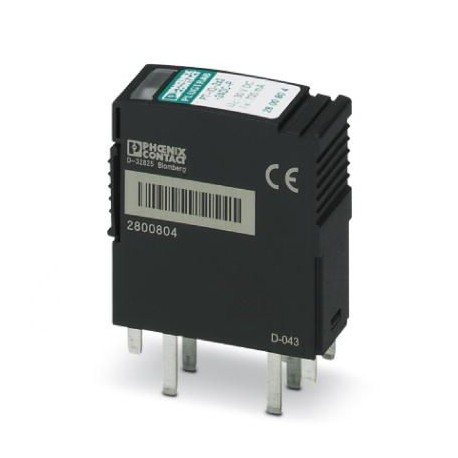

| Orderkey | 2800804 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 76 (C-6-2013) |
| GTIN | 4046356659185 |
| Weight per Piece (excluding packing) | 50.600 g |
| Custom tariff number | 85363010 |
| Country of origin | DE (Germany) |
Dimensions
| Height | 45 mm |
|---|---|
| Width | 17.7 mm |
| Depth | 53.4 mm |
| Horizontal pitch | 1 Div. |
| Complete module height | 91.1 mm |
| Complete module width | 17.7 mm |
| Complete module depth | 77.5 mm |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 70 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Degree of protection | IP20 |
General
| Housing material | PA 6.6 |
|---|---|
| Flammability rating according to UL 94 | V0 |
| Color | black |
| Mounting type | on base element |
| Type | Male |
| Direction of action | Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground |
Protective circuit
| Nominal voltage UN | 24 V DC |
|---|---|
| Maximum continuous voltage UC | 30 V DC |
| 21 V AC | |
| Rated current | 700 mA (45°C) |
| Surge protection fault message | Optical, multi-stage |
