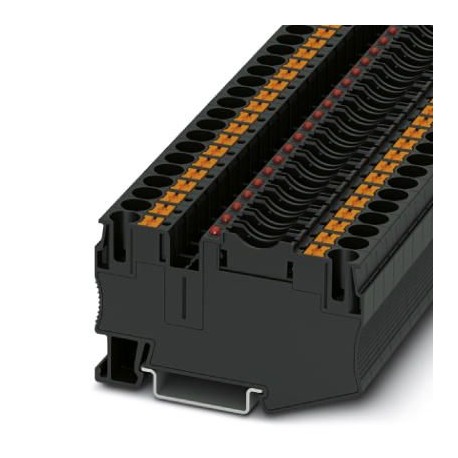

Key Commercial Data
| Orderkey | 3212169 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Catalog page | Page 106 (C-1-2017) |
| GTIN | 4055626394329 |
| Weight per Piece (excluding packing) | 19.370 g |
| Custom tariff number | 85369095 |
| Country of origin | CN (China) |
General
| Note | The current is determined by the fuse used, the voltage by the light indicator. |
|---|---|
| Number of levels | 1 |
| Number of connections | 2 |
| Nominal cross section | 6 mm² |
| Color | black |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Maximum power dissipation for nominal condition | 1.31 W |
| Fuse | |
| Fuse type | Flat |
| Rated surge voltage | 6 kV |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Insulating material group | I |
| LED voltage range | 6 V DC … 12 V DC (LED red) |
| LED current range | 0.31 mA … 0.95 mA |
| Connection in acc. with standard | IEC 60947-7-3 |
| Maximum load current | 30 A (In separate arrangement with 4 mm² conductor cross section) |
| Nominal current IN | 25 A (with 4 mm² conductor cross section) |
| Nominal voltage UN | 12 V |
| Open side panel | No |
Connection data
| Conductor cross section solid min. | 0.5 mm² |
|---|---|
| Conductor cross section solid max. | 10 mm² |
| Conductor cross section flexible min. | 0.5 mm² |
| Conductor cross section flexible max. | 6 mm² |
| Conductor cross section AWG min. | 20 |
| Conductor cross section AWG max. | 8 |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 0.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 6 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 0.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 6 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. | 0.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. | 1.5 mm² |
| Connection method | Push-in connection |
| Stripping length | 10 mm … 12 mm |
| Internal cylindrical gage | A5 |
Standards and Regulations
| Connection in acc. with standard | IEC 60947-7-3 |
|---|---|
| Flammability rating according to UL 94 | V0 |
