Key Commercial Data
| Orderkey | 2839376 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 113 (C-4-2017) |
| GTIN | 4017918182809 |
| Weight per Piece (excluding packing) | 51.530 g |
| Custom tariff number | 85363010 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 85 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Altitude | ≤ 2000 m (amsl (above mean sea level)) |
| Degree of protection | IP20 |
General
| Housing material | PA 6.6 |
|---|---|
| Flammability rating according to UL 94 | V-0 |
| Color | jet black RAL 9005 |
| Mounting type | DIN rail: 35 mm |

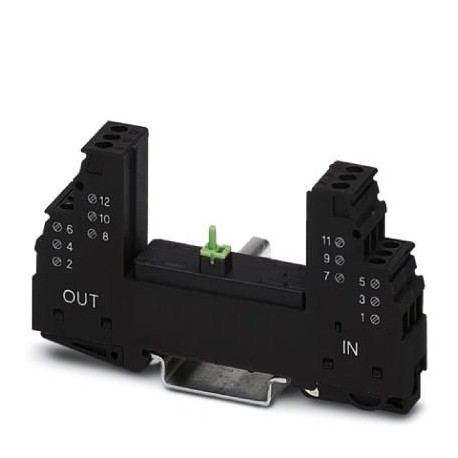

| Type | Base element, DIN rail mounting |
| Number of positions | 4 |
| Direction of action | Signal Ground/Shield-Earth Ground |
Protective circuit
| Nominal voltage UN | 48 V AC |
|---|---|
| Maximum continuous voltage UC | 77 V DC |
| 55 V AC | |
| Rated current | 300 mA (45°C) |
| Resistance in series | 4.7 Ω 10 % |
| Surge protection fault message | none |
| Max. required back-up fuse | 315 mA (T) |
Connection data
| Connection method | Screw connection |
|---|---|
| Screw thread | M3 |
| Tightening torque | 0.5 Nm |
| Stripping length | 8 mm |
| Conductor cross section flexible | 0.2 mm² … 2.5 mm² |
| Conductor cross section solid | 0.2 mm² … 4 mm² |
| Conductor cross section AWG | 24 … 12 |
