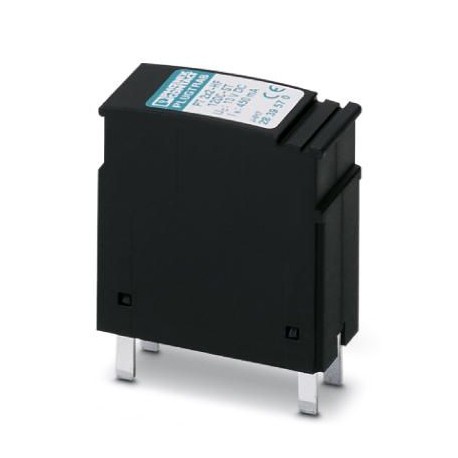

Key Commercial Data
| Orderkey | 2839570 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 161 (C-4-2017) |
| GTIN | 4017918591113 |
| Weight per Piece (excluding packing) | 22.150 g |
| Custom tariff number | 85363010 |
| Country of origin | DE (Germany) |
General
| Housing material | PA |
|---|---|
| Flammability rating according to UL 94 | V-0 |
| Color | black |
| Standards for cearances and creepage distances | DIN VDE 0110-1 |
| IEC 60664-1 | |
| Mounting type | on base element |
| Type | Male |
| Number of positions | 5 |
| Direction of action | Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground |
| Arrester can be tested with CHECKMASTER from software version: | From SW rev. 1.00 |
Protective circuit
| IEC test classification | C1 |
|---|---|
| C2 | |
| C3 | |
| D1 | |
| VDE requirement class | C1 |
| C2 | |
| C3 | |
| D1 | |
| Nominal voltage UN | 12 V DC |
| Maximum continuous voltage UC | 13 V DC |
| 9 V AC | |
| Rated current | 450 mA (45°C) |
| Operating effective current ICat UC | ≤ 5 µA |
| Residual current IPE | ≤ 4 µA (with PT 2X2-BE) |
| ≤ 1 µA (with PT 2X2+F-BE) | |
| Nominal discharge current In(8/20) µs (line-line) | 10 kA |
| Nominal discharge current In(8/20) µs (line-earth) | 10 kA |
| Pulse discharge current Iimp(10/350) µs | 2.5 kA |
| Total discharge current Itotal(8/20) µs | 20 kA |
| Max. discharge current Imax(8/20) µs maximum (line-line) | 10 kA |
| Max. discharge current Imax(8/20) µs maximum (line-earth) | 10 kA |
| Nominal pulse current Ian (10/1000) µs (line-line) | 67 A |
| Output voltage limitation at 1 kV/µs (line-line) spike | ≤ 50 V |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 450 V |
| ≤ 1 kV (with PT 2X2+F-BE) | |
| Output voltage limitation at 1 kV/µs (line-line) static | ≤ 25 V |
| Output voltage limitation at 1 kV/µs (line-signalground) static | ≤ 450 V |
| Residual voltage at In(line-line) | ≤ 25 V |
| Residual voltage with Ian (10/1000) µs (line-line) | ≤ 23 V |
| Voltage protection level Up(line-line) | ≤ 100 V (C2 – 10 kV / 5 kA) |
| Voltage protection level Up(line-earth) | ≤ 450 V (C2 – 10 kV / 5 kA) |
| Response time tA(line-line) | ≤ 500 ns |
| Response time tA(line-earth) | ≤ 500 ns |
| Input attenuation aE, sym. | 0.2 dB (≤ 5 MHz) |
| Input attenuation aE, asym. | |
| Cut-off frequency fg (3 dB), sym. in 100 Ohm system | typ. 70 MHz |
| Capacity (line-line) | typ. 30 pF |
| Resistance in series | 2.2 Ω |
| Surge protection fault message | none |
| Max. required back-up fuse | 500 mA (T) |
| Impulse durability (line-line) | C2 – 10 kV/5 kA |
| Impulse durability (line-earth) | C2 – 10 kV/5 kA |
| D1 – 2.5 kA |
Connection data
| Connection method | Screw connection (in connection with the base element) |
|---|---|
| Conductor cross section flexible | 0.2 mm² … 2.5 mm² |
| Conductor cross section solid | 0.2 mm² … 4 mm² |
| Conductor cross section AWG | 24 … 12 |
