Key Commercial Data
| Orderkey | 2920023 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 90 (TT-2011) |
| GTIN | 4046356154017 |
| Weight per Piece (excluding packing) | 51.120 g |
| Custom tariff number | 85363010 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Dimensions
| Height | 89.8 mm |
|---|---|
| Width | 17.7 mm |
| Depth | 52 mm |
| Horizontal pitch | 1 Div. |
| Complete module height | 90 mm |
| Complete module width | 17.7 mm |
| Complete module depth | 65.5 mm |
General
| Flammability rating according to UL 94 | V-0 |
|---|---|
| Color | black |
| Mounting type | DIN rail: 35 mm |

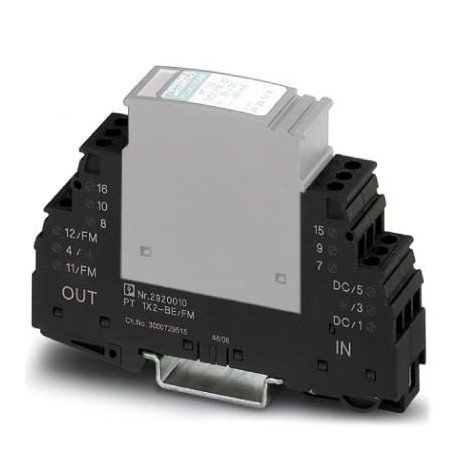

| Type | Base element, DIN rail mounting |
| Number of positions | 2 |
| Direction of action | Signal Ground/Shield-Earth Ground |
Connection data
| Connection method | Screw connection |
|---|---|
| Connection method IN | Screw terminal blocks |
| Connection method OUT | Screw terminal blocks |
| Screw thread | M3 |
| Tightening torque | 0.8 Nm |
| Stripping length | 8 mm |
| Conductor cross section flexible | 0.2 mm² … 2.5 mm² |
| Conductor cross section solid | 0.2 mm² … 4 mm² |
| Conductor cross section AWG | 24 … 12 |
