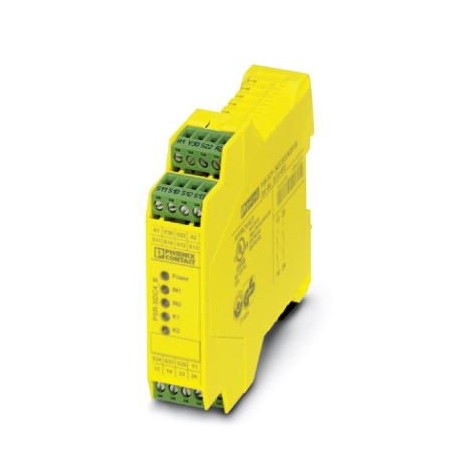

Key Commercial Data
| Orderkey | 2981499 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 262 (C-6-2017) |
| GTIN | 4046356051699 |
| Weight per Piece (excluding packing) | 197.900 g |
| Custom tariff number | 85371098 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -20 °C … 55 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 70 °C |
| Max. permissible relative humidity (operation) | 75 % (on average, 85% infrequently, non-condensing) |
| Max. permissible humidity (storage/transport) | 75 % (on average, 85% infrequently, non-condensing) |
| Maximum altitude | ≤ 2000 m (Above sea level) |
Input data
| Rated control circuit supply voltage US | |
|---|---|
| Nominal input voltage UN | 24 V DC |
| Input voltage range in reference to UN | 0.85 … 1.1 |
| Typical input current at UN | 70 mA |
| Voltage at input/start and feedback circuit | approx. 24 V DC |
| Typical response time | 20 ms (manual start) |
| 150 ms (automatic start) | |
| Typical release time | 10 ms |
| Recovery time | 1 s |
| Max. permissible overall conductor resistance | 50 Ω (Input and start circuits at UN) |
Output data
| Contact type | 2 enabling current paths |
|---|---|
| 1 semiconductor signaling output | |
| Contact material | AgSnO2 |
| Maximum switching voltage | 250 V AC/DC |
| Minimum switching voltage | 15 V AC/DC |
| Limiting continuous current | 6 A (N/O contact) |
| 100 mA (signal output) | |
| Maximum inrush current | 6 A |
| Inrush current, minimum | 25 mA |
| Interrupting rating (ohmic load) max. | 144 W (24 V DC, τ = 0 ms) |
| 288 W (48 V DC, τ = 0 ms) | |
| 77 W (110 V DC, τ = 0 ms) | |
| 88 W (220 V DC, τ = 0 ms) | |
| 1500 VA (250 V AC, τ = 0 ms) | |
| Maximum interrupting rating (inductive load) | 48 W (24 V DC, τ = 40 ms) |
| 40 W (48 V DC, τ = 40 ms) | |
| 35 W (110 V DC, τ = 40 ms) | |
| 33 W (220 V DC, τ = 40 ms) | |
| Switching capacity min. | 0.4 W |
| Mechanical service life | approx. 107cycles |
| Switching capacity (360/h cycles) | 6 A (24 V DC) |
| 5 A (230 V (AC15)) | |
| Output fuse | 10 A gL/gG NEOZED (N/O contact) |
| Miniature circuit breaker C6 (24 V / 20 A power supply unit) |
