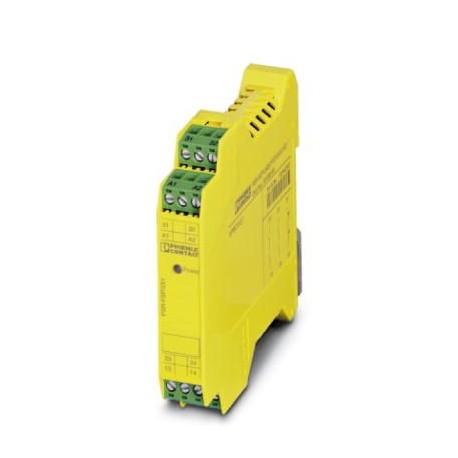

Key Commercial Data
| Orderkey | 2986960 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 287 (C-6-2017) |
| GTIN | 4046356520911 |
| Weight per Piece (excluding packing) | 186.500 g |
| Custom tariff number | 85364900 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C … 55 °C (observe derating) |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 70 °C |
| Max. permissible relative humidity (operation) | 75 % (on average, 85% infrequently, non-condensing) |
| Max. permissible humidity (storage/transport) | 75 % (on average, 85% infrequently, non-condensing) |
| Maximum altitude | ≤ 2000 m (Above sea level) |
Input data
| Rated control circuit supply voltage US | 24 V DC -15 % / +10 % |
|---|---|
| Rated control supply current IS | typ. 55 mA |
| Power consumption at US | typ. 1.32 W |
| Inrush current | max. 100 mA |
| Typ. starting time with Us | 50 ms |
| Typical release time | 50 ms |
| Recovery time | 1 s |
| Operating voltage display | 1 x yellow LED |
| Protective circuit | Surge protection Suppressor diode, 33 V (A1 – A2) |
| Maximum switching frequency | 0.5 Hz |
| Filter time | max. 5 ms (at A1 in the event of voltage dips at Us) |
| max. 2 ms (Test pulse width; high test pulse at A1/A2) | |
| ≥ 100 ms (Test pulse width; high test pulse at A1/A2) | |
| Test pulse rate = 80 x Test pulse width | |
| max. 5 ms (Test pulse width; low test pulse at A1/A2) | |
| ≥ 50 ms (Test pulse rate; low test pulse at A1/A2) | |
| Test pulse rate = 15 x Test pulse width |
Output data
| Contact type | 2 enabling current paths |
|---|---|
| 1 confirmation current path | |
| Contact material | AgCuNi, + 0.2 µm Au |
| Maximum switching voltage | 250 V AC/DC (N/O contact / N/C contact, observe the load curve) |
| Minimum switching voltage | 15 V AC/DC (N/O contact / N/C contact) |
| Limiting continuous current | 5 A (N/O contact, pay attention to the derating) |
| 100 mA (N/C contact) | |
| Maximum inrush current | 5 A (N/O contact) |
| 100 mA (N/C contact) | |
| Inrush current, minimum | 5 mA (N/O contact / N/C contact) |
| Sq. Total current | 50 A2(observe derating) |
| Interrupting rating (ohmic load) max. | 120 W (24 V DC, τ = 0 ms, N/C contact: 2.4 W) |
| 192 W (48 V DC, τ = 0 ms, N/C contact: 4.8 W) | |
| 162 W (60 V DC, τ = 0 ms, N/C contact: 6 W) | |
| 66 W (110 V DC, τ = 0 ms, N/C contact: 11 W) | |
| 60 W (220 V DC, τ = 0 ms, N/C contact: 22 W) | |
| 1250 VA (250 V AC, τ = 0 ms, N/C contact: 25 VA) | |
| Maximum interrupting rating (inductive load) | 72 W (24 V DC, τ = 40 ms, N/C contact: 2.4 W) |
| 43 W (48 V DC, τ = 40 ms, N/C contact: 4.8 W) | |
| 41 W (60 V DC, τ = 40 ms, N/C contact: 6 W) | |
| 35 W (110 V DC, τ = 40 ms, N/C contact: 11 W) | |
| 48 W (220 V DC, τ = 40 ms, N/C contact: 22 W) | |
| Switching capacity | min. 75 mW |
| Mechanical service life | 10x 106cycles |
| Output fuse | 10 A gL/gG (N/O contact) |
| 4 A gL/gG (for low-demand applications) | |
| 150 mA Fast-blow (N/C contact) |
