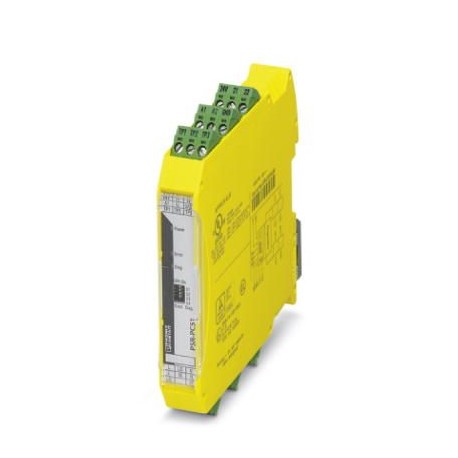

Key Commercial Data
| Orderkey | 2702522 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626283388 |
| Weight per Piece (excluding packing) | 147.480 g |
| Custom tariff number | 85364190 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -25 °C … 60 °C (observe derating) |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 65 °C |
| Max. permissible relative humidity (operation) | 75 % (on average, 85% infrequently, non-condensing) |
| Max. permissible humidity (storage/transport) | 75 % (on average, 85% infrequently, non-condensing) |
| Air pressure (operation) | 79 kPa … 106 kPa |
| Air pressure (storage/transport) | 79 kPa … 106 kPa |
| Maximum altitude | ≤ 2000 m (Above sea level) |
Power supply
| Rated control circuit supply voltage US | 24 V DC -15 % / +10 % |
|---|---|
| 20.4 V DC … 26.4 V DC | |
| Rated control supply current IS | typ. 75 mA |
| Power consumption at US | typ. 2 W (at US/UD; On state) |
| Inrush current | max. 100 mA |
| Filter time | 2 ms (at A1-A2 in the event of voltage dips at Us) |
| max. 2 ms (at A1-A2; low test pulse width) | |
| ≥ 100 ms (at A1-A2; low test pulse rate) | |
| max. 17 ms (at A1-A2; high test pulse width) | |
| ≥ 800 ms (at A1-A2; high test pulse rate) | |
| Diagnostic supply voltage UD | 24 V DC -20 % / +25 % |
| Input current at UD | 35 mA (at UD= 24 V) |
| 45 mA (at UD= 19 V) | |
| 25 mA (at UD= 30 V) | |
| Inrush current at UD | 1.5 A (Δt |
| Power consumption at UD | typ. 0.9 W (at UD; Off state) |
| Protective circuit | Surge protection 36 V suppressor diode (A1-A2)33 V suppressor diode (24V-GND) |
| Polarity reversal protection for rated control circuit supply voltage and diagnostic supply voltage |
Digital inputs
| Description of the input | Test point for proof test |
|---|---|
| Number of inputs | 3 |
| Inrush current | typ. 200 mA |
| Current consumption | typ. 20 mA (Input TP1) |
| typ. 20 mA (Input TP2) | |
| typ. 30 mA (Input TP3) | |
| Type of protection | Surge protection |
| Protective circuit/component | 36 V suppressor diode |
