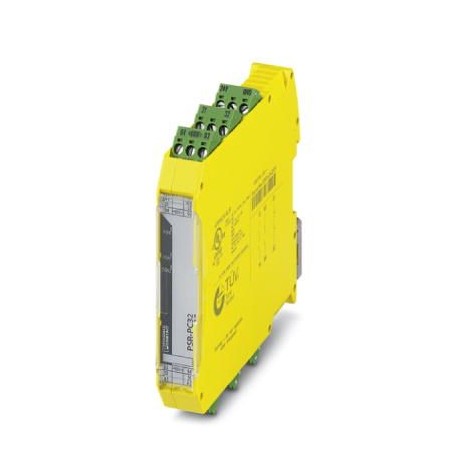

Key Commercial Data
| Orderkey | 2700582 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 284 (C-6-2017) |
| GTIN | 4046356916370 |
| Weight per Piece (excluding packing) | 226.500 g |
| Custom tariff number | 85364900 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -40 °C … 70 °C (observe derating) |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Max. permissible relative humidity (operation) | 75 % (on average, 85% infrequently, non-condensing) |
| Max. permissible humidity (storage/transport) | 75 % (on average, 85% infrequently, non-condensing) |
| Maximum altitude | ≤ 2000 m (Above sea level) |
Power supply
| Rated control circuit supply voltage US | 24 V AC/DC … 230 V AC/DC -15 % … +10 % |
|---|---|
| Rated control supply current IS | 75 mA (24 V DC) |
| 34 mA (48 V DC) | |
| 97 mA (42 V AC) | |
| 28 mA (120 V AC) | |
| 16 mA (230 V AC) | |
| Power consumption at US | 1.8 W (with DC) |
| 2.1 W (with AC) | |
| Apparent power | typ. 4.1 VA |
| Inrush current | typ. 16 A (Δt s) |
| < 5 mA (at terminal blocks 24V/GND at UD) | |
| Filter time | 10 ms (24 V DC, A1 in the event of voltage dips at Us) |
| max. 1.5 ms (at A1-A2; test pulse width; at 24 V DC) | |
| 7.5 ms (at A1-A2; test pulse rate; at 24 V DC) | |
| Test pulse rate = 5 x Test pulse width | |
| Diagnostic supply voltage UD | 24 V DC -15 % / +10 % |
| Input current at UD | < 5 mA (at terminal blocks 24V/GND at UD) |
| Protective circuit | US: surge protection Varistor 275 V |
| UD: surge protection 33 V suppressor diode | |
| UD: Polarity protection |
Relay outputs: enabling current path
| Output name | Enabling current path |
|---|---|
| Output description | safety-related N/O contacts |
| Number of outputs | 2 (undelayed) |
| Contact type | 2 enabling current paths |
| Contact material | AgSnO2 |
| Switching voltage | min. 12 V AC/DC |
| max. 250 V AC/DC (13/14, observe the load curve) | |
| max. 60 V AC/DC (93/94, observe the load curve) | |
| Limiting continuous current | 6 A (observe derating) |
| Inrush current | min. 3 mA |
| max. 6 A | |
| Sq. Total current | 72 A2(observe derating) |
| Switching capacity | min. 60 mW |
| Switching frequency | max. 1 Hz |
| Mechanical service life | 10x 106cycles |
| Switching capacity (360/h cycles) | 4 A (24 V (DC13)) |
| 5 A (230 V (AC 15)) | |
| Output fuse | 6 A gL/gG |
| 4 A gL/gG (for low-demand applications) |
