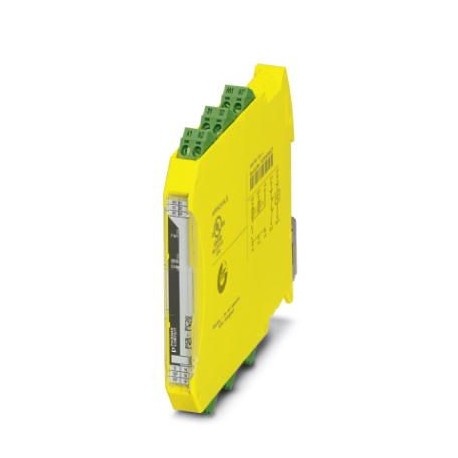

Key Commercial Data
| Orderkey | 2700578 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 284 (C-6-2017) |
| GTIN | 4046356916400 |
| Weight per Piece (excluding packing) | 182.100 g |
| Custom tariff number | 85364900 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -40 °C … 70 °C (observe derating) |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Max. permissible relative humidity (operation) | 75 % (on average, 85% infrequently, non-condensing) |
| Max. permissible humidity (storage/transport) | 75 % (on average, 85% infrequently, non-condensing) |
| Maximum altitude | ≤ 2000 m (Above sea level) |
Power supply
| Rated control circuit supply voltage US | 24 V DC -15 % / +10 % (A1/A2) |
|---|---|
| 20.4 V DC … 26.4 V DC | |
| Rated control supply current IS | typ. 50 mA |
| Power consumption at US | typ. 1.2 W |
| Inrush current | typ. 400 mA (Δt s) |
| Filter time | max. 2 ms (at A1-A2; test pulse width) |
| ≥ 100 ms (at A1-A2; test pulse rate) | |
| Diagnostic supply voltage UD | 24 V DC -15 % / +10 % (31/A2, TBUS) |
| Input current at UD | 6 mA (at 31-A2 for UD; depending on load + 100 mA at M1 and 32) |
| Inrush current at UD | typ. 2.5 A (Δt D) |
| Protective circuit | Serial protection against polarity reversal 33 V suppressor diode (A1/A2)33 V suppressor diode (31/A2) |
Relay outputs: enabling current path
| Output name | Enabling current path |
|---|---|
| Output description | 2 N/O contacts in series, without delay, floating |
| Number of outputs | 1 (safety-related N/O contacts: 13/14 (13F/14)) |
| Contact type | 1 enabling current path |
| Contact material | AgSnO2 |
| Switching voltage | min. 12 V AC/DC |
| max. 250 V AC/DC (Observe the load curve) | |
| Limiting continuous current | 6 A (13/14 for high-demand) |
| 4 A (13F/14 with high/low demand, 13/14 with low demand) | |
| Inrush current | min. 3 mA |
| max. 6 A (N/O contact 13/14) | |
| 4 A (N/O contact 13F/14) | |
| Sq. Total current | 36 A2(13/14, see to derating) |
| 16 A2(13F/14, see to derating) | |
| Switching capacity | min. 60 mW |
| Switching frequency | max. 0.5 Hz |
| Mechanical service life | 10x 106cycles |
| Switching capacity according to IEC 60947-5-1 | 4 A (24 V (DC13); N/O contact 13/14) |
| 5 A (250 V (AC15); N/O contact 13/14) | |
| 4 A (250 V (AC15); N/O contact 13F/14) | |
| Output fuse | 6 A gL/gG (N/O contact 13/14) |
| 4 A gL/gG (for low-demand applications) |
