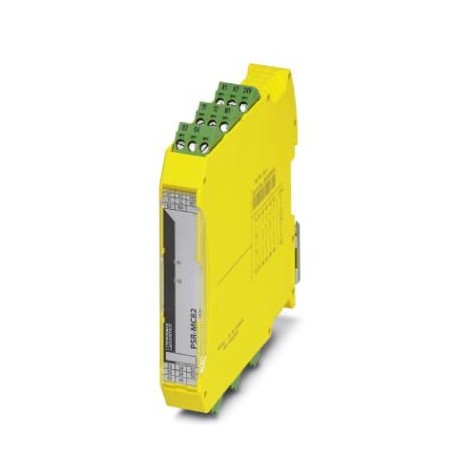

Key Commercial Data
| Orderkey | 2702382 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 259 (C-6-2017) |
| GTIN | 4055626145471 |
| Weight per Piece (excluding packing) | 215.000 g |
| Custom tariff number | 85371098 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -20 °C … 60 °C (observe derating) |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 80 °C |
| Max. permissible relative humidity (operation) | 75 % (on average, 85% infrequently, non-condensing) |
| Max. permissible humidity (storage/transport) | 75 % (on average, 85% infrequently, non-condensing) |
| Maximum altitude | max. 2000 m (Above sea level) |
Power supply
| Rated control circuit supply voltage US | 24 V DC -20 % / +25 % |
|---|---|
| 19.2 V DC … 30 V DC | |
| Rated control supply current IS | typ. 80 mA |
| Power consumption at US | typ. 1.92 W |
| Inrush current | 30 mA (Δt = 7 ms at Us) |
| Filter time | 4 ms (at A1 in the event of voltage dips at Us) |
| max. 1 ms (at A1/A2, test pulse width, blanking pulses/dark test) | |
| 5 ms (at A1/A2, test pulse rate, blanking pulses/dark test) | |
| Where test pulse width | |
| max. 1 ms (at A1/A2, test pulse width, switch-on pulses/light test) | |
| 10 ms (at A1/A2; test pulse rate; switch-on pulses/light test) | |
| Deactivate switch-on pulses/light tests for safety applications. | |
| Protective circuit | Surge protection Suppressor diode |
| Reverse polarity protection Universal diode |
Relay outputs: enabling current path
| Output name | Enabling current path |
|---|---|
| Output description | safety-related N/O contacts |
| Number of outputs | 5 (undelayed) |
| Contact type | 5 enabling current paths |
| Contact material | AgSnO2 |
| Switching voltage | min. 5 V AC/DC |
| max. 24 V DC (Enabling current path 23/24) | |
| max. 250 V AC/DC (all other enabling current paths, observe load curve) | |
| Limiting continuous current | 6 A (observe derating) |
| Inrush current | min. 10 mA |
| max. 6 A | |
| Sq. Total current | 64 A2(observe derating) |
| Switching capacity | min. 50 mW |
| Switching frequency | 0.5 Hz |
| Mechanical service life | 10x 106cycles |
| Output fuse | 10 A gL/gG |
| 6 A gL/gG (for low-demand applications) |
