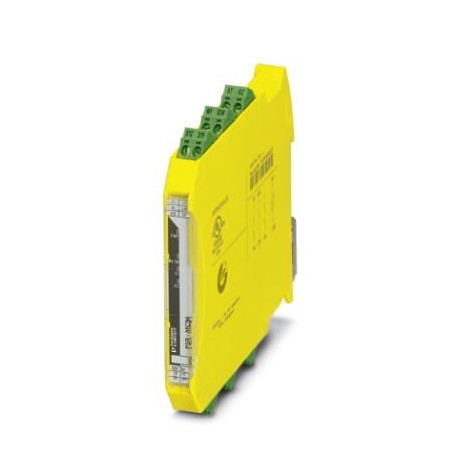

Key Commercial Data
| Orderkey | 2700548 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 254 (C-6-2017) |
| GTIN | 4046356912686 |
| Weight per Piece (excluding packing) | 173.700 g |
| Custom tariff number | 85371098 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -40 °C … 55 °C (observe derating) |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Max. permissible relative humidity (operation) | 75 % (on average, 85% infrequently, non-condensing) |
| Max. permissible humidity (storage/transport) | 75 % (on average, 85% infrequently, non-condensing) |
| Maximum altitude | ≤ 2000 m (Above sea level) |
Power supply
| Rated control circuit supply voltage US | 24 V DC -15 % / +10 % |
|---|---|
| 20.4 V DC … 26.4 V DC | |
| Rated control supply current IS | typ. 84 mA |
| Power consumption at US | typ. 2 W |
| Inrush current | 5 A (Δt = 200 µs at Us) |
| Filter time | 1 ms (at A1 in the event of voltage dips at Us) |
| Protective circuit | Surge protection Suppressor diode |
| Protection against polarity reversal for rated control circuit supply voltage |
Digital inputs
| Input voltage range “0” signal | 0 V DC … 5 V DC (for safe Off; at S12) |
|---|---|
| Input current range “0” signal | 0 mA … 2 mA (for safe Off; at S12) |
| Inrush current | < 20 mA (with Us/Ixto S12) |
| < 200 mA (with Us/Ixto S34) | |
| < 5 mA (with Us/Ixto S22) | |
| > -15 mA (with Us/Ixto S22/0V) | |
| Current consumption | < 5 mA (with Us/Ixto S12) |
| < 5 mA (with Us/Ixto S22) | |
| > -5 mA (with Us/Ixto S34) | |
| > -5 mA (with Us/Ixto S22/0V) | |
| < 10 mA (with Us/Ixto S34) | |
| Filter time | max. 1.5 ms (at S12, S22; test pulse width) |
| min. 7.5 ms (at S12, S22; test pulse rate) | |
| Test pulse rate = 5 x Test pulse width | |
| Voltage at input/start and feedback circuit | 24 V DC -15 % / +10 % |
| Max. permissible overall conductor resistance | 150 Ω |
