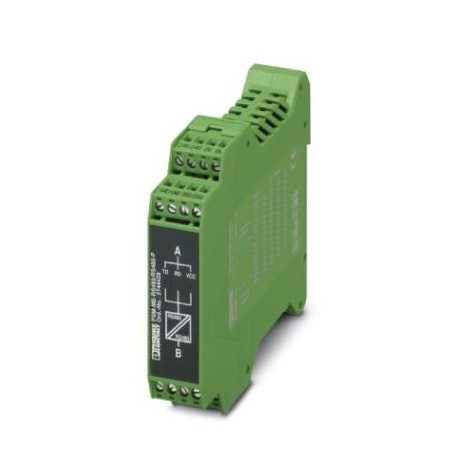

Key Commercial Data
| Orderkey | 2744429 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 166 (C-5-2017) |
| GTIN | 4017918171797 |
| Weight per Piece (excluding packing) | 188.800 g |
| Custom tariff number | 85176200 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -40 °C … 70 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Permissible humidity (operation) | 10 % … 95 % (non-condensing) |
| Altitude | 5000 m (For restrictions see manufacturer’s declaration) |
| Degree of protection | IP20 |
| Noise immunity | EN 50 082-2 |
General
| Transmission channels | 2 (1/1), TD, RD, half duplex |
|---|---|
| Bit delay | < 200 ns |
| Bit distortion | < 1.5 % |
| Bit distortion, input | max. ± 35 % |
| Bit distortion, output | < 3.6 % |
| Electrical isolation | VCC // RS-485 (A) // RS-485 (B) |
| Test voltage data interfaces | 1.5 kV AC |
| Test voltage data interface/power supply | 1.5 kV AC |
| 1.5 kVrms(50 Hz, 1 min.) | |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Noise emission | EN 50 081-1 |
| Net weight | 188.8 g |
| Housing material | PA 6.6-FR |
| Color | green |
| MTTF | 1808 Years (SN 29500 standard, temperature 25 °C, operating cycle 21 % (5 days a week, 8 hours a day)) |
| 796 Years (SN 29500 standard, temperature 40 °C, operating cycle 34.25 % (5 days a week, 12 hours a day)) | |
| 334 Years (SN 29500 standard, temperature 40 °C, operating cycle 100 % (7 days a week, 24 hours a day)) | |
| Degree of pollution | 2 |
| Conformance | CE-compliant |
| ATEX | II 3 G Ex nA IIC T4 Gc (Please follow the special installation instructions in the documentation!) |
| IECEx | Ex nA IIC T4 Gc |
| UL, USA/Canada | 508 recognized |
| Class I, Div. 2, Groups A, B, C, D | |
| Class I, Zone 2, AEx nA IIC T4 | |
| Class I, Zone 2, Ex nA IIC T4 Gc X |
Power supply
| Nominal supply voltage | 24 V AC/DC |
|---|---|
| Supply voltage range | 18 V AC/DC … 30 V AC/DC (via pluggable COMBICON screw terminal block) |
| Max. current consumption | 100 mA |
| Typical current consumption | 90 mA (24 V DC) |
| Conductor cross section flexible max. | 2.50 mm² |
| Conductor cross section flexible min. | 0.20 mm² |
| Conductor cross section solid max. | 2.50 mm² |
| Conductor cross section solid min. | 0.20 mm² |
| Max. AWG conductor cross section, flexible | 12 |
| Min. AWG conductor cross section, flexible | 24 |
| Conductor cross section AWG max. | 12 |
| Conductor cross section AWG min. | 24 |
