Key Commercial Data
| Orderkey | 2799445 |
|---|---|
| Packing unit | 1 M |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 370 (C-8-2015) |
| GTIN | 4017918138813 |
| Weight per Piece (excluding packing) | 91.750 g |
| Custom tariff number | 85447000 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C … 70 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C … 70 °C |
| Altitude | 5000 m |
Line characteristics

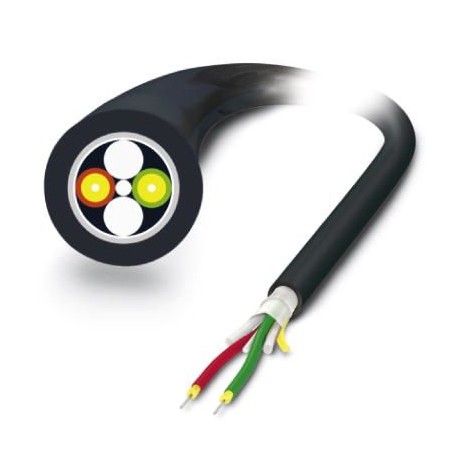

| Cable type | PCF |
|---|---|
| Cable abbreviation | AT-VQHB2Y 2K200/230 10A17+8B20 |
| Length of cable | Free entry (1.0 … 1000.0 m) |
| External cable diameter | 10.5 mm |
| Wire colors | Red/Green |
| External sheath, color | black |
| Outer sheath, material | PE |
| Strain relief elements, external sheath | Non-metallic, aramide fiber |
| Cable weight | 97 kg/km |
| Bending radius, single element | 30 mm (Short-term) |
| 50 mm (Permanent) | |
| Bending radius, entire cable | 150 mm (Short-term) |
| 200 mm (Permanent) | |
| Tensile strength short-term/long-term | 1500 N / 200 N |
| Lateral pressure short term | 500 N/cm |
| Lateral pressure, long-term | 300 N/cm |
| Impact strength | 1,5 Nm / 3 x |
| cable layer type | Outdoors |
| Halogen-free | According to IEC 60754-2 |
| Fiber | HCS, 200/230 µm |
