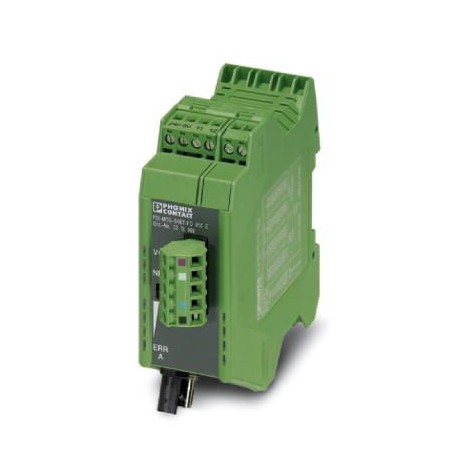

Key Commercial Data
| Orderkey | 2313999 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 327 (C-6-2017) |
| GTIN | 4046356513807 |
| Weight per Piece (excluding packing) | 232.000 g |
| Custom tariff number | 85176200 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -20 °C … 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Permissible humidity (operation) | 30 % … 95 % (non-condensing) |
| Altitude | 5000 m (For restrictions see manufacturer’s declaration) |
| Degree of protection | IP20 |
| Noise immunity | EN 61000-6-2 |
Serial interface
| Interface 1 | CAN interface, in accordance with ISO/IS 11898 for DeviceNet, CAN, CANopen |
|---|---|
| Operating mode | Semi-duplex |
| No. of ports | 2 (CAN_High / CAN_Low) |
| Connection method | COMBICON plug-in screw terminal block |
| File format/coding | Bit stuffing, NRZ |
| Transmission medium | 2-wire twisted pair, shielded |
| Transmission method | CSMA/CA |
| Transmission length | ≤ 5000 m (Dependent on the data rate and the protocol used) |
| Number of bus devices | ≤ 64 (per potential segment) |
| ≤ 63 (DeviceNet™, can be addressed logically) | |
| ≤ 128 (CANopen®, can be addressed logically) | |
| Termination resistor | 124 Ω (Integrated and ready to be switched) |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 14 |
Optical interface FO
| Transmit capacity, minimum | -14.5 dBm (50/125 µm) |
|---|---|
| -13.3 dBm (62,5/125 µm) | |
| -10.2 dBm (200/230 µm) | |
| Minimum receiver sensitivity | -28.1 dBm (50/125 µm) |
| -28.1 dBm (62,5/125 µm) | |
| -28.1 dBm (200/230 µm) | |
| Wavelength | 850 nm |
| Transmission length incl. 3 dB system reserve | 4200 m (with F-G 50/125 2.5 dB/km) |
| 3900 m (with F-G 62,5/125 3.0 dB/km) | |
| 1800 m (with F-K 200/230 8 dB/km with quick mounting connector) | |
| Transmission medium | PCF fiber |
| Multi-mode fiberglass | |
| Transmission protocol | Protocol transparent for CAN interface |
| Connection method | B-FOC (ST®) |
