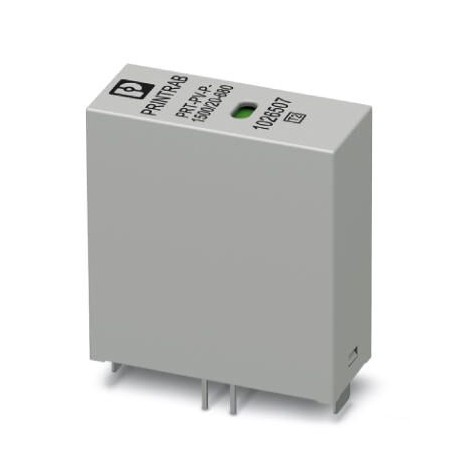

PRT-PV-P-1500/20-680 1026507 PHOENIX CONTACT Surge protective device for space-saving PCB installation, in a..
PRT-PV-P-1500/20-680 1026507 PHOENIX CONTACT Surge protective device for space-saving PCB installation, in a..
Surge protective device for space-saving PCB installation, in accordance with type 2 / CLASS II, for 2-pol isolated 1500 V DC voltage systems and for 3-phase power supply networks up to 690 V AC in combination (L1, L2, L3, PE, N), with integrated remote indication contact in each plug, status indication on the module
Liên hệ:
Key Commercial Data
| Orderkey | 1026507 |
|---|---|
| Packing unit | 1 |
| Catalog page | Page 80 (C-4-2019) |
| GTIN | 4055626519500 |
| Custom tariff number | 85354000 |
Ambient conditions
| Degree of protection | IP00 |
|---|---|
| Ambient temperature (operation) | -40 °C … 85 °C |
| Altitude | ≤ 5000 m (Standard insulation) |
| ≤ 3000 m (Reinforced insulation) | |
| Permissible humidity (operation) | 5 % … 95 % |
| Shock (operation) | 25g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z) |
| Vibration (operation) | 5g (10 … 500 Hz / 2.5 h / X, Y, Z) |
General
| IEC test classification | |
|---|---|
| EN type | |
| PV | |
| SPD failure behavior | OCM |
| Installation location | Interior |
| Accessibility | Accessible |
| Installation location of the disconnect device | Internal |
| Mounting type | PCB mounting |
| Color | traffic grey A RAL 7042 |
| Housing material | PBT 10 % GF/PA 6.6 |
| Degree of pollution | 2 |
| Flammability rating according to UL 94 | V-0 |
Protective circuit DC voltage side (DC)
| Maximum continuous operating voltage UCPV | 800 V DC (Single) |
|---|---|
| 1600 V DC (2 serial connections) | |
| Continuous operating current ICPV | ≤ 20 µA (2 serial connections) |
| Residual current IPE | ≤ 20 µA (2 in series/Ucpv) |
| ≤ 0.5 mA (Single/UREF) | |
| Nominal discharge current (8/20) µs | 20 kA |
| Maximum discharge current Imax(8/20) µs | 40 kA |
| Voltage protection level Up | ≤ 2.7 kV (Single) |
| ≤ 5.4 kV (2 serial connections) | |
| Response time tA | ≤ 25 ns |
| Insulation resistance Riso | > 5 MΩ () |
| Max. backup fuse with branch wiring | 125 A (aR) |
| Recommended backup fuse maximum | 100 A (gG) |
Indicator/remote signaling
| Switching function | normal/deterioration |
|---|---|
| Operating voltage | 30 V AC |
| 30 V DC | |
| Operating current | 1 A AC |
| 1 A DC |
Standards and Regulations
| Standards/regulations | EN 50539-11 2013 |
|---|---|
| IEC 61643-11 2011 | |
| IEC 61643-11 2012 |
Classifications
Ambient conditions
| Degree of protection | IP00 |
|---|---|
| Ambient temperature (operation) | -40 °C … 85 °C |
| Altitude | ≤ 5000 m (Standard insulation) |
| ≤ 3000 m (Reinforced insulation) | |
| Permissible humidity (operation) | 5 % … 95 % |
| Shock (operation) | 25g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z) |
| Vibration (operation) | 5g (10 … 500 Hz / 2.5 h / X, Y, Z) |
