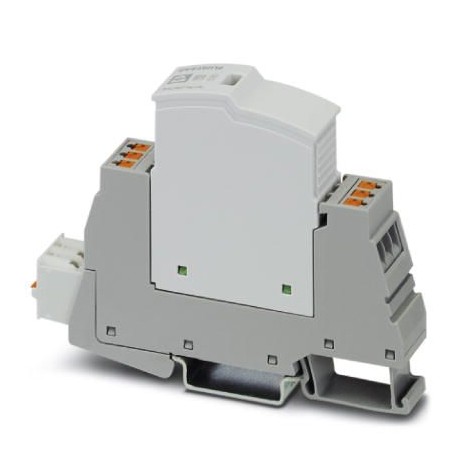

Key Commercial Data
| Orderkey | 2907927 |
|---|---|
| Packing unit | 5 pc |
| GTIN | 4055626257631 |
| Weight per Piece (excluding packing) | 77.160 g |
| Custom tariff number | 85363030 |
| Country of origin | DE (Germany) |
Dimensions
| Height | 101 mm |
|---|---|
| Width | 17.7 mm |
| Depth | 74.5 mm (incl. DIN rail 7.5 mm) |
| Horizontal pitch | 1 Div. |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -40 °C … 80 °C |
| Ambient temperature (storage/transport) | -40 °C … 80 °C |
| Altitude | ≤ 2000 m (operating voltage remote contact ≤ 250 V) |
| ≤ 6000 m (operating voltage remote contact ≤ 150 V) | |
| Permissible humidity (operation) | 5 % … 95 % |
| Shock (operation) | 30g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z) |
| Vibration (operation) | 5g (5 … 500 Hz / 2.5 h / X, Y, Z) |
General
| EN type | T2 / T3 |
|---|---|
| IEC power supply system | TT |
| TN-S | |
| Number of ports | One |
| Mode of protection | L-N |
| L-PE | |
| N-PE | |
| Mounting type | DIN rail: 35 mm |
| Color | light gray RAL 7035 |
| traffic grey A RAL 7042 | |
| Housing material | PA 6.6-FR 20% GF |
| PA 6.6-FR | |
| Degree of pollution | 2 |
| Flammability rating according to UL 94 | V-0 |
| Type | DIN rail module, two-section, divisible |
| Number of positions | 2 |
| Surge protection fault message | Optical, remote indicator contact |
Protective circuit
| Nominal voltage UN | 120 V AC (TN-S) |
|---|---|
| 120 V AC (TT) | |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Maximum continuous voltage UC | 150 V AC |
| Rated load current IL | 26 A (at 30 °C) |
| Residual current IPE | ≤ 5 µA |
| Nominal discharge current In(8/20) µs | 5 kA |
| Standby power consumption PC | ≤ 10.6 mVA (at UREF) |
| ≤ 13.5 mVA (at UC) | |
| Reference test voltage UREF | 132 V AC |
| Max. discharge current Imax(8/20) µs | 10 kA |
| Combination wave UOC | 6 kV |
| Voltage protection level Up(L-N) | ≤ 0.75 kV (at UOC) |
| ≤ 0.95 kV (at In) | |
| Voltage protection level Up(L-PE) | ≤ 0.85 kV |
| Voltage protection level Up(N-PE) | ≤ 0.85 kV |
| TOV behavior at UT(L-N) | 240 V AC (5 s / withstand mode) |
| 240 V AC (120 min / withstand mode) | |
| TOV behavior at UT(L-PE) | 240 V AC (5 s / withstand mode) |
| 240 V AC (120 min / withstand mode) | |
| 1332 V AC (200 ms / safe failure mode) | |
| TOV behavior at UT(N-PE) | 1200 V AC (200 ms / safe failure mode) |
| Response time tA(L-N) | ≤ 25 ns |
| Response time tA(L-PE) | ≤ 100 ns |
| Response time tA(N-PE) | ≤ 100 ns |
| Short-circuit current rating ISCCR | 10 kA AC |
| Max. backup fuse with branch wiring | 32 A (gG / B / C) |
| Maximum backup fuse for through wiring | 25 A (gG / B / C) |
Additional technical data
| Short-circuit current rating ISCCR | 0.25 kA DC (without additional backup fuse) |
|---|---|
| 5 kA DC (for 20 A gG / B backup fuse) | |
| Maximum continuous voltage UC | 150 V DC |
| IEC test classification (in accordance with IEC 61643-21) | D1 |
| Mode of protection | (DC+) – (DC-) |
| (DC+/DC-) – PE | |
| Impulse durability (line-line) | D1 – 500 A |
| Impulse durability (line-earth) | D1 – 500 A |
| Pulse discharge current Iimp(10/350) µs (line-line) | 0.5 kA |
| Pulse discharge current Iimp(10/350) µs (line-earth) | 0.5 kA |
