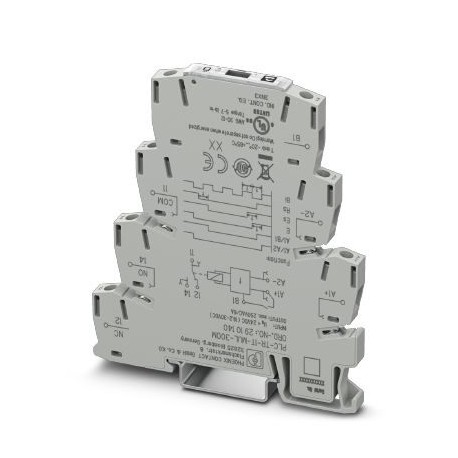

Ultra-narrow multi-function time relay with 4 functions, adjustable time range (0.1 s – 300 min), 1 PDT, screw connection
Liên hệ:
Key Commercial Data
| Orderkey | 2910140 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 262 (C-5-2019) |
| Weight per Piece (excluding packing) | 0.000 g |
| Custom tariff number | 85364900 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C … 65 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C … 80 °C |
| Maximum altitude | ≤ 2000 m |
| Permissible humidity (operation) | 15 % … 85 % |
| Degree of protection | IP20 |
| Noise immunity | EN 61000-6-2 |
Coil side
| Input voltage range | 24 V DC (19.2 V DC … 30 V DC) |
|---|---|
| Function | E: With switch-on delay |
| Es: With switch-on delay and control contact | |
| Rs: With release delay and control contact | |
| Bi: Flashing beginning with pulse | |
| Setting range time | 0.1 s … 300 min. (4 time end ranges) |
| Recovery time | 50 ms |
Contact side
| Contact type | 1 floating PDT |
|---|---|
| Maximum switching voltage | 250 V AC |
| Interrupting rating (ohmic load) max. | 1500 VA (6 A / 250 V AC) |
| Output fuse | 6.3 A (fast-blow) |
General
| Status display | Green LED (POWER) |
|---|---|
| Yellow LED (relay active) | |
| Mechanical service life | approx. 2x 107cycles |
| Nominal power consumption | 0.45 W (at 24 V DC) |
| Mounting position | any |
| Assembly instructions | on standard DIN rail NS 35 in accordance with EN 60715 |
| Color | traffic grey A RAL 7042 |
| Housing insulation material | Polyamide PA, self-extinguishing |
| Permissible humidity (operation) | 15 % … 85 % |
Connection data
| Connection method | Screw connection |
|---|---|
| Stripping length | 8 mm |
| Conductor cross section solid | 0.14 mm² … 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² … 2.5 mm² |
| Conductor cross section AWG | 30 … 12 |
| Torque | 0.6 Nm … 0.8 Nm () |
| 5 lbf-in. … 7 lbf-in. |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
|---|---|
| Noise emission | EN 61000-6-3 |
| Noise immunity | EN 61000-6-2 |
| Standards/regulations | IEC 61812-1 |
| IEC 60947-5-1 | |
| Rated insulation voltage | 300 V AC |
| Rated surge voltage | 6 kV |
| Insulation | Basic insulation |
| Pollution degree | 2 |
| Overvoltage category | III |
| Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EU |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
Classifications
