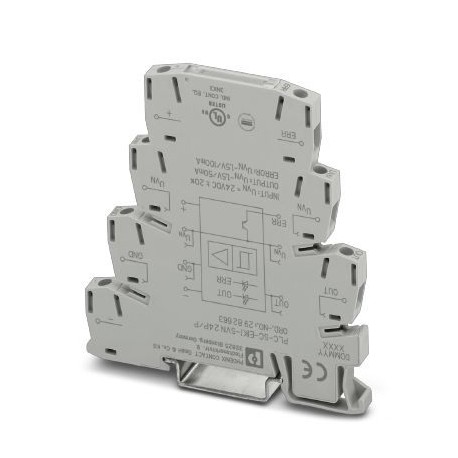

Key Commercial Data
| Orderkey | 2982663 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 420 (C-5-2017) |
| GTIN | 4046356147330 |
| Weight per Piece (excluding packing) | 35.540 g |
| Custom tariff number | 85364190 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -25 °C … 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Degree of protection | IP20 |
Input data
| Designation | Device supply |
|---|---|
| Nominal input voltage UN | 24 V DC |
| Input voltage range in reference to UN | 0.8 … 1.2 |
| Input voltage range | 19.2 V DC … 28.8 V DC |
| Typical input current at UN | approx. 14 mA |
| Max. current consumption | approx. 70 mA (at 50 mA output current) |
| Operating voltage display | Green LED |
| Type of protection | Reverse polarity protection |
| Surge protection | |
| Protective circuit/component | Polarity protection diode |
| Suppressor diode | |
| Designation | Control circuit |
| Nominal input voltage UN | 8.2 V DC ±10 % |
| Type of protection | Surge protection |
| Protective circuit/component | Suppressor diode |
| Non-load voltage | 8.2 V DC ±10 % |
| Switching point | ≥ 2.1 mA (In conductive state) |
| ≤ 1.2 mA (In blocking state) | |
| 6.3 mA … 10 mA (in the event of a short-circuit) | |
| 0 mA … 0.35 mA (In the event of a wire break) | |
| Switching hysteresis | approx. 0.2 mA |
| Internal resistance | approx. 1 kΩ |
| Cable length | < 30 m |
| Power dissipation for nominal condition | 0.34 W |
Output data
| Designation | Signal output |
|---|---|
| Output nominal voltage | ≤ 100 mV (In conductive state) |
| UVN– UR;in blocking state | |
| Limiting continuous current | 50 mA |
| Transmission frequency | approx. 350 Hz |
| Voltage drop at max. limiting continuous current | ≤ 1.5 V (UR) |
| Status display | Green LED |
| Indication | Red LED |
| Type of protection | Surge protection |
| Protective circuit/component | Suppressor diode |
| Designation | Alarm output |
| Output nominal voltage | UVN– URes |
| Limiting continuous current | 50 mA |
| Voltage drop at max. limiting continuous current | ≤ 2 V (URest) |
| Indication | Red LED |
| Type of protection | Surge protection |
| Protective circuit/component | Suppressor diode |
