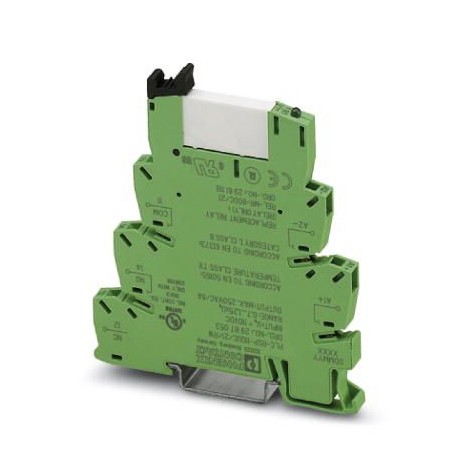

Key Commercial Data
| Orderkey | 2987053 |
|---|---|
| Packing unit | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 362 (C-7-2013) |
| GTIN | 4046356155281 |
| Weight per Piece (excluding packing) | 34.020 g |
| Custom tariff number | 85364900 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -40 °C … 70 °C (Temperature class TX) |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
Coil side
| Nominal input voltage UN | 110 V DC |
|---|---|
| Input voltage range in reference to UN | 0.7 … 1.25 |
| Typical input current at UN | 2 mA |
| Typical response time | 4 ms |
| Typical release time | 4 ms |
| Coil voltage | 60 V DC |
| Protective circuit | Bridge rectifier Bridge rectifier |
| Free-wheeling diode Damping diode | |
| Surge protection | |
| RCZ filter | |
| Wide-range electronics | |
| Operating voltage display | Yellow LED |
| Power dissipation for nominal condition | 0.22 W |
Contact side
| Contact type | 1 PDT |
|---|---|
| Type of switch contact | Single contact |
| Contact material | AgSnO |
| Maximum switching voltage | 250 V AC/DC (Separating plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules.) |
| Minimum switching voltage | 5 V (at 100 mA) |
| Min. switching current | 10 mA (at 12 V) |
| Maximum inrush current | on request |
| Limiting continuous current | 6 A (see derating curve) |
| Interrupting rating (ohmic load) max. | 140 W (at 24 V DC) |
| 20 W (at 48 V DC) | |
| 18 W (at 60 V DC) | |
| 23 W (at 110 V DC) | |
| 40 W (at 220 V DC) | |
| 1500 VA (for 250 V AC) | |
| Switching capacity | 1 A (at 24 V, DC13) |
| 0.2 A (at 110 V, DC13) | |
| 0.1 A (at 220 V, DC13) | |
| 3 A (at 24 V, AC15) | |
| 3 A (at 120 V, AC15) | |
| 3 A (at 230 V, AC15) |
