PLC-RPT-230AC/21HC/SO46/HI 1079404 PHOENIX CONTACT PLC-INTERFACE consisting of PLC-BSC…/21HC/SO46/HI basic..
PLC-RPT-230AC/21HC/SO46/HI 1079404 PHOENIX CONTACT PLC-INTERFACE consisting of PLC-BSC…/21HC/SO46/HI basic..

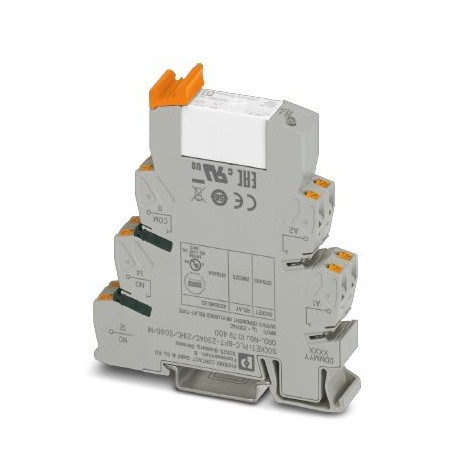

PLC-INTERFACE consisting of PLC-BSC…/21HC/SO46/HI basic terminal block with Push-in connection and pluggable miniature relay for high continuous current, 1 changeover contact, nominal input voltage of 230 V AC with defined activation and deactivation thresholds
Liên hệ:
Key Commercial Data
| Orderkey | 1079404 |
|---|---|
| Packing unit | 1 |
| Catalog page | Page 393 (C-5-2019) |
| GTIN | 4055626798677 |
| Custom tariff number | 85364900 |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -40 °C … 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Maximum altitude | ≤ 2000 m |
| Degree of protection | RT II (Relay) |
| IP20 (Relay base) | |
| Degree of protection at installation location | IP54 |
Coil side
| Nominal input voltage UN | 230 V AC |
|---|---|
| Typical input current at UN | 16 mA |
| Switch-on threshold | 190 V AC |
| Switch-off threshold | 170 V AC |
| Typical response time | 10 ms |
| Typical release time | 8 ms |
| Coil voltage | 60 V DC |
| Input circuit | RC element with threshold value switch |
| Protective circuit | Bridge rectifier |
| Operating voltage display | Yellow LED |
| Power dissipation for nominal condition | 1.04 W |
Contact side
| Contact type | 1 PDT |
|---|---|
| Type of switch contact | Single contact |
| Contact material | AgNi |
| Maximum switching voltage | 250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC… or …FBST 500…) |
| Minimum switching voltage | 12 V (at 10 mA) |
| Min. switching current | 10 mA (at 12 V) |
| Maximum inrush current | 30 A (300 ms) |
| Limiting continuous current | 10 A |
| 6 A (value applies to connections 12. If connections 12 are bridged, the normal value applies.) | |
| Interrupting rating (ohmic load) max. | 240 W (at 24 V DC) |
| 58 W (at 48 V DC) | |
| 48 W (at 60 V DC) | |
| 50 W (at 110 V DC) | |
| 80 W (at 220 V DC) | |
| 2500 VA (for 250 V AC) | |
| Interrupting rating (ohmic load) max. bridged | 144 W (for 24 V DC. Value applies to connections 12. If connections 12 are bridged, the normal value applies.) |
| 1500 VA (for 250 V AC. Value applies to connections 12. If connections 12 are bridged, the normal value applies.) | |
| Switching capacity | 2 A (at 24 V, DC13) |
| 0.2 A (at 110 V, DC13) | |
| 0.2 A (at 250 V, DC13) | |
| 6 A (at 24 V, AC15) | |
| 6 A (at 120 V, AC15) | |
| 6 A (at 250 V, AC15) |
Connection data
| Connection name | Coil side |
|---|---|
| Connection method | Push-in connection |
| Stripping length | 8 mm |
| Conductor cross section solid | 0.14 mm² … 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² … 2.5 mm² |
| 0.2 mm² … 2.5 mm² (Single ferrule) | |
| 2x 0.5 mm² … 1 mm² (TWIN ferrule) | |
| Conductor cross section AWG | 26 … 14 |
Connection data 2
| Connection name | Contact side |
|---|---|
| Connection method | Push-in connection |
| Stripping length | 8 mm |
| Conductor cross section solid | 0.14 mm² … 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² … 2.5 mm² |
| 0.2 mm² … 2.5 mm² (Single ferrule) | |
| 2x 0.5 mm² … 1 mm² (TWIN ferrule) | |
| Conductor cross section AWG | 26 … 14 |
General
| Test voltage relay winding/relay contact | 4 kV AC (50 Hz, 1 min.) |
|---|---|
| Operating mode | 100% operating factor |
| Degree of protection | RT II (Relay) |
| IP20 (Relay base) | |
| Mechanical service life | 3x 107cycles |
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
Standards and Regulations
| Designation | Air clearances and creepage distances between the power circuits |
|---|---|
| Standards/regulations | IEC 60664 |
| EN 50178 | |
| Rated surge voltage | 4 kV |
| Insulation | Basic insulation |
| Safe isolation, reinforced insulation, and 6 kV between input circuit and output contact current paths | |
| Degree of pollution | 2 |
| Overvoltage category | III |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
Articles in set
Relay base PLC-BPT-230AC/21HC/SO46/HI 1079400
14 mm PLC basic terminal block for high continuous currents, resistant to interference voltages of up to 190 V AC, thanks to defined activation and deactivation thresholds with Push-in connection, without relay, for mounting on DIN rail NS 35/7,5, 1 changeover contact, input voltage of 230 V AC
Single relay REL-MR- 60DC/21HC 2961325
Plug-in miniature power relay, with power contact for high continuous currents, 1 PDT, 60 V DC
Classifications
14 mm PLC basic terminal block for high continuous currents, resistant to interference voltages of up to 190 V AC, thanks to defined activation and deactivation thresholds with Push-in connection, without relay, for mounting on DIN rail NS 35/7,5, 1 changeover contact, input voltage of 230 V AC
14 mm PLC basic terminal block for high continuous currents, resistant to interference voltages of up to 190 V AC, thanks to defined activation and deactivation thresholds with Push-in connection, without relay, for mounting on DIN rail NS 35/7,5, 1 changeover contact, input voltage of 230 V AC
Plug-in miniature power relay, with power contact for high continuous currents, 1 PDT, 60 V DC
Plug-in miniature power relay, with power contact for high continuous currents, 1 PDT, 60 V DC
